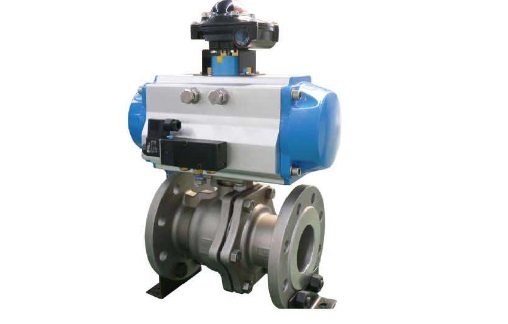

RP-500Y Metal Seated Ball Valve
RP-500Y Metal Seated Ball Valve
Valve Specific Information
Size:112 10 (DN15DNZOO)
Pressure PN10-180 Class152Lb-Class 1500Lb
Suitable flange GB/T 9113. ASME B165. EN 1092-1
ISO 5211 Actuator Mourting
Blow-out-proof stem design petistatic
Body WCB. CF8. CFM
Ball SS304. SS316
Stem 20Cr13. 17-4PH.SS304. SS316
Connection Flange
|
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
|
RP-510Y |
1/2-8” |
WCB |
304+STL |
304+STL |
Flanged |
|
RP-520Y |
1/2-8” |
WCB |
304+Ni55 |
304+Ni55 |
Flanged |
|
RP-530Y |
1/2-8” |
WCB |
304+Cr3C2 |
304+Cr3C2 |
Flanged |
|
RP-540Y |
1/2-8” |
CF8 |
304+STL |
304+STL |
Flanged |
|
RP-550Y |
1/2-8” |
CF8 |
304+Ni55 |
304+Ni55 |
Flanged |
|
RP-560Y |
1/2-8” |
CF8 |
304+Cr3C2 |
304+Cr3C2 |
Flanged |
|
RP-570Y |
1/2-8” |
CF8M |
316_STL |
316_STL |
Flanged |
|
RP-580Y |
1/2-8” |
CF8M |
316+Ni55 |
316+Ni55 |
Flanged |
|
RP-590Y |
1/2-8” |
CF8M |
316+Cr3C2 |
316+Cr3C2 |
Flanged |
