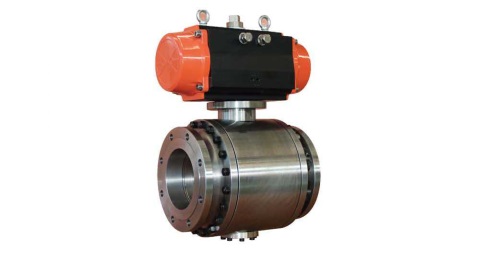

RP-500Y Metal Seated Trunnion Ball Valve
RP-500Y Metal Seated Trunnion Ball Valve
Valve Specific Information
Size 2-20 (DN50DN500)
Pressure PN10-160 Class 1502Lb Class1500Lb
Suitable flange GB/T 9113. ASME B165. EN 1092-1
ISO 5211 Actuator Mounting
Blow-out-proof stem design Antistatic
Body.WCB. CF8. CF8M Ball:SS304. SS316 .
Stem 20Cr13. 17-4PH, SS304. SS316
Connection Flange
|
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
|
RP-510Y |
2”-20” |
WCB |
304+STL |
304+STL |
Flanged |
|
RP-520Y |
2”-20” |
WCB |
304+Ni55 |
304+Ni55 |
Flanged |
|
RP-530Y |
2”-20” |
WCB |
304+Cr3C2 |
304+Cr3C2 |
Flanged |
|
RP-540Y |
2”-20” |
CF8 |
304+STL |
304+STL |
Flanged |
|
RP-550Y |
2”-20” |
CF8 |
304+Ni55 |
304+Ni55 |
Flanged |
|
RP-560Y |
2”-20” |
CF8 |
304+Cr3C2 |
304+Cr3C2 |
Flanged |
|
RP-570Y |
2”-20” |
CF8M |
316_STL |
316_STL |
Flanged |
|
RP-580Y |
2”-20” |
CF8M |
316+Ni55 |
316+Ni55 |
Flanged |
|
RP-590Y |
2”-20” |
CF8M |
316+Cr3C2 |
316+Cr3C2 |
Flanged |
