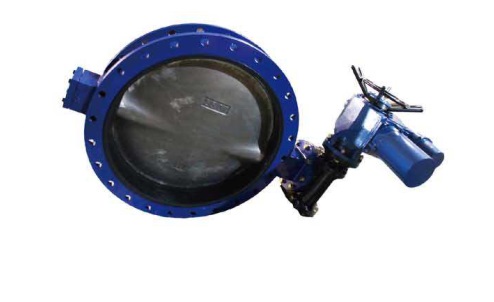

RP-800 Center Line-type Flanged Butterffy Valve
RP-800 Center Line-type Flanged Butterffy Valve
Valve Specific Information
Size:2-240 (DN50-DN6000mm)
Connected style: Flanged
Body material: WCB, Ductile iron Stainless steel
Valve plate material: Ductile iron nylon coated, Ductile iron-zinc plated, Al bronze
Construction: ISO5752 AP1609 GB12221
Design standard:GB12238 .
Inspection standard: ISO 5208 e
Inspection standard:
Density 1.1XPN
Body bearing pressure:1.5xPN .
Seal material and working temperature
EPDM: -35-+135°C
NBR: 25-+90°C
PTFE: 40-+200°C
Suitable flanged:
PN6/10/16kg
ANSI CLASS 125/150
JIS 5/10k e
Working pressure:
2-12 ANSI CLASS 125/150,
14-48 ANSI CLASS125
DN50-DN1200 PN16
|
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
|
RP-850 |
2”-240” |
WCB |
304 |
EPDM/NBR/PTFE |
Flanged |
|
RP-851 |
2”-240” |
WCB |
316 |
EPDM/NBR/PTFE |
Flanged |
|
RP-852 |
2”-240” |
WCB |
316L |
EPDM/NBR/PTFE |
Flanged |
|
RP-860 |
2”-240” |
304 |
3104 |
EPDM/NBR/PTFE |
Flanged |
|
RP-861 |
2”-240” |
304 |
316 |
EPDM/NBR/PTFE |
Flanged |
|
RP-862 |
2”-240” |
304 |
316L |
EPDM/NBR/PTFE |
Flanged |
|
RP-870 |
2”-240” |
316 |
316 |
EPDM/NBR/PTFE |
Flanged |
|
RP-871 |
2”-240” |
316 |
316L |
EPDM/NBR/PTFE |
Flanged |
