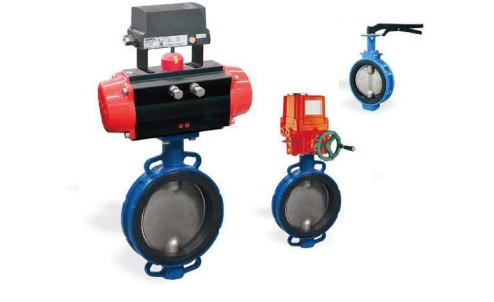

RP-800 Center Line-type Wafer Butterffy Valve
RP-800 Center Line-type Wafer Butterffy Valve
Valve Specific Information
Size:2-80 (DN50-DN2000)
Connected style: Wafer,multiple hole-wafer, .
Body material: Aluminum alloyed, Ductile iron Stainless steel e
Valve plate material: Ductile iron nylon coated, Ductile iron-zinc plated, Al bronze .
Construction ISO5752 AP1609 GB12221
Design standard:GB12238
Inspection standard: ISO 5208
Inspection standard:
1) Density 1.1XPN
2) Body bearing pressure: 1.5XPN
Seal material and working temperature
EPDM: 35 +135 C
NBR: -25+90°C
PTFE: -40-+200°C
FPM: -29-+205°C
Suitable flanged: PN6/10/16kg
ANSI CLASS 125/150 JIS 5/10k
Working pressure:
2-12 ANSI CLASS 125/150.
14-48" ANSI CLASS125
DN50-DN1200 PN16
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
RP-810 |
2”-80” |
Ductile Iron |
Ductile Iron |
EPDM/NBR/PTFE |
Water |
RP-811 |
2”-80” |
Ductile Iron |
304 |
EPDM/NBR/PTFE |
Water |
RP-812 |
2”-80” |
Ductile Iron |
316 |
EPDM/NBR/PTFE |
Water |
RP-813 |
2”-80” |
Ductile Iron |
316L |
EPDM/NBR/PTFE |
Water |
RP-820 |
2”-80” |
304 |
304 |
EPDM/NBR/PTFE |
Water |
RP-821 |
2”-80” |
304 |
316 |
EPDM/NBR/PTFE |
Water |
RP-822 |
2”-80” |
304 |
316L |
EPDM/NBR/PTFE |
Water |
RP-823 |
2”-80” |
316 |
316 |
EPDM/NBR/PTFE |
Water |
RP-830 |
2”-80” |
316 |
316L |
EPDM/NBR/PTFE |
Flanged |
