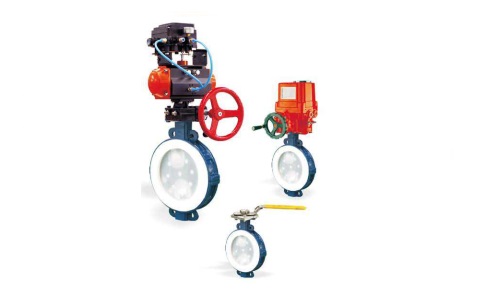

RP-800F Lined Butterffy Valve
RP-800F Lined Butterffy Valve
Valve Specific Information -
Size: 2"-80" (DN50-DN2000) .
Working Pressure: PN10.16 ANSI CLASS 125/150 .
Connecting Flanged: JB/T74-90
Construction:GB/T12221. ASME B16.10 .
End connection: Wafer. Flanged GB9113 ANSIB16.10
Body Material: CF8/CF8M/Carbon steel steel PTFEJEPDM/FEP/NBRVITON etc GB12238 API598 .
Disc Materia: Stainless steel, Carbon -
Lined Material: . Designed standard: JB/T8527 AP1609 .
Testing and Inspecting: GB/T13927
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
RP-810F |
2”-80” |
WCB |
WCB+F46 |
F46 |
Water |
RP-820F |
2”-80” |
WCB |
304+F46 |
F46 |
Water |
RP-830F |
2”-80” |
304 |
304+F46 |
F46 |
Water |
RP-840F |
2”-80” |
WCB |
WCB+PTFE |
PTFE |
Water |
RP-850F |
2”-80” |
WCB |
304+PTFE |
PTFE |
Water |
RP-880F |
2”-80” |
304 |
304+PTFE |
PTFE |
Water |
