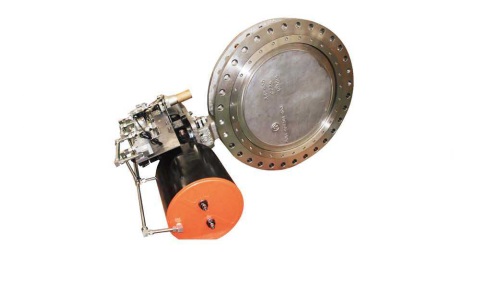

RP-920 High Perfoimance Flange Butterffy Valve
RP-920 High Perfoimance Flange Butterffy Valve
Valve Specific Information
Size: 2-60 ( DN50-DN1500) .
Pressure: CL150LB, 1.0MPa, 1.6MPa, 2.5MPa
Connection Type: Wafer
Design: API 609 .
Test: API 598
Length: ASME B 16.10 GB/T12221 e
Mounting :ISO 5211 .
Flow Character : Approximately Equal Percentage .
Actuator : Mannual, Pneumatic, Electrical, Elec-hydraulic
Lip seal structure to compensate for changes in temperature and pressure
|
Order No. |
Size |
Body Material |
Plated Material |
Valve Seat |
Connection Style |
|
RP-921 |
14”-60” |
WCB |
304 |
PTFE/PPL/Alloy steel |
Flanged |
|
RP-922 |
14”-60” |
WCB |
316 |
PTFE/PPL/Alloy steel |
Flanged |
|
RP-923 |
14”-60” |
304 |
304 |
PTFE/PPL/Alloy steel |
Flanged |
|
RP-924 |
14”-60” |
304 |
316 |
PTFE/PPL/Alloy steel |
Flanged |
|
RP-925 |
14”-60” |
316 |
316 |
PTFE/PPL/Alloy steel |
Flanged |
