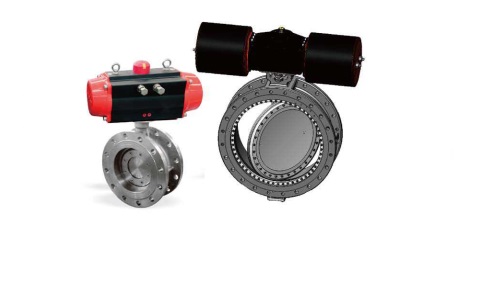

RP-940 Three Eccentric Flanged Butterffy Valve

Liên hệ Còn hàng

RP-940  Three Eccentric Flanged Butterffy Valve





Valve Specific Information .

Size:2"-240 (DN50-DN6000mm) .

Working Pressure: PN16. 25, 40 ANSI CLASS 125/150/300 .

Connecting Flanged: JB/T74-90 GB9113 ANSI B16.5 .

End connection: Flanged .

Body Material: CF8/CF8M/Carbon .

Disc Material: Stainless steel. .

Face to Face: ANSIB16.10 .

Designed standard: JB/T8527 .

Testing and Inspecting:GB/T13927 Steel Carbon steel GB12221 AP1609 GB/T12238 API598





Order No.

Size

Body Material

Plated Material

Valve Seat

Connection Style

RP-940

2”-240”

WCB

WCB

Alloy steel

Flanged

RP-941

2”-240”

WCB

304

Alloy steel

Flanged

RP-942

2”-240”

WCB

316

Alloy steel

Flanged

RP-943

2”-240”

304

304

304

Flanged

RP-944

2”-240”

304

316

304

Flanged

RP-945

2”-240”

316

316

316

Flanged
