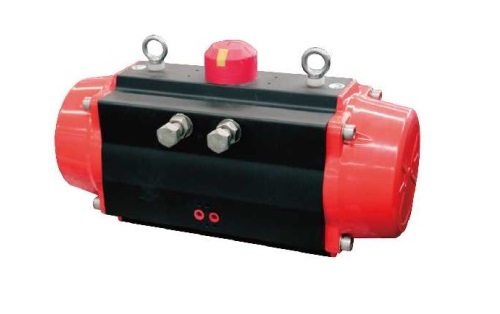

RP Pneumatic Actuator
RP Pneumatic Actuator
Valve Specifications Cylinder Diameter : 50mm - 1000mm

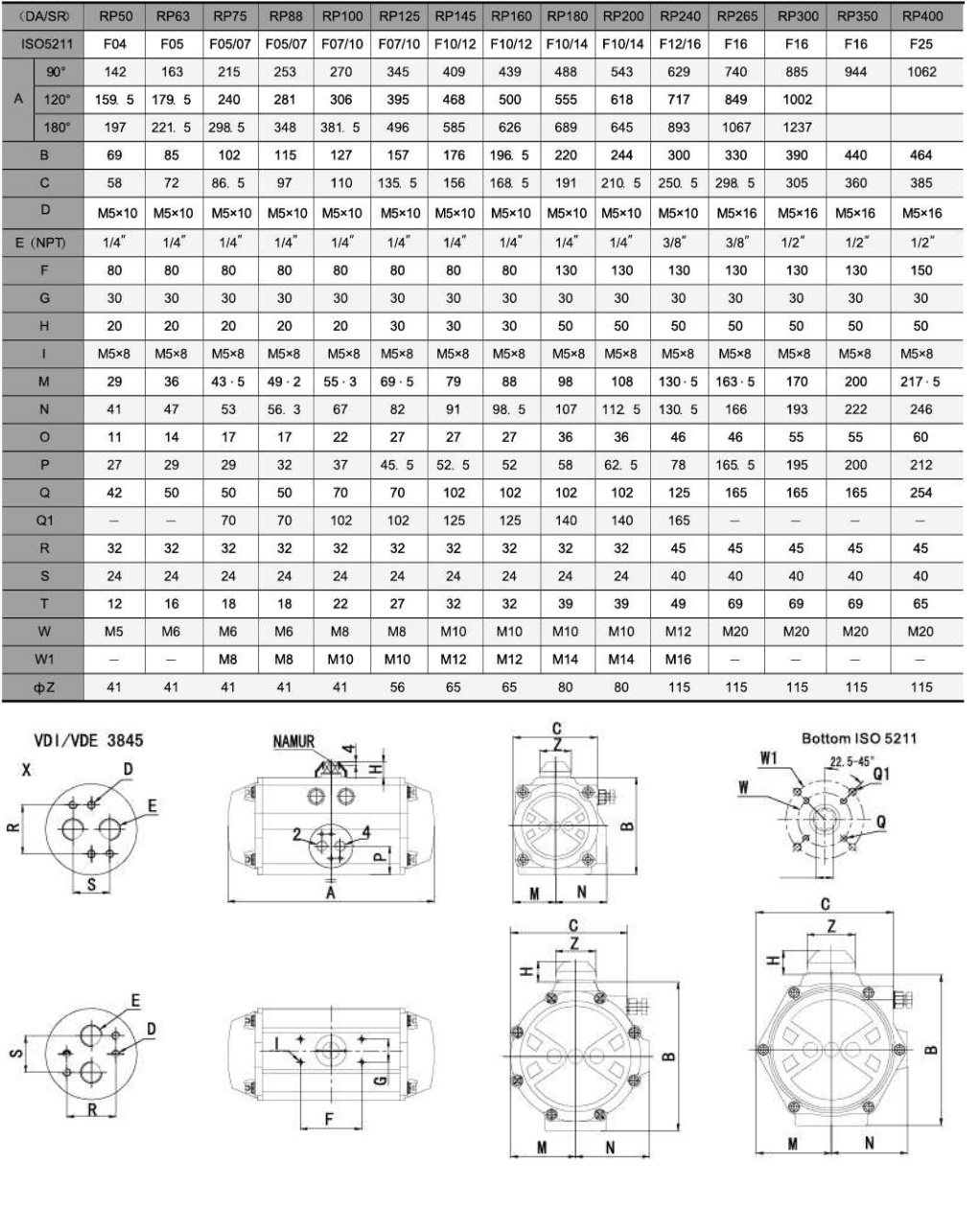

Air interface and top mounting size is in conform to standard of VDI / MDE3845 NAMUR
Bottom hole size is in conform to ISO5211 , DIN3337 .
Constructional style : 2 sections
Travel length : 90 * 120 * 180°
Action style : Single and Double
Start and ending position : + 5°
Lockable at anywhere
Temperature range : NT ( - 20C - 80°C ) NBR LT ( - 40°C ~ 80°C ) ; Silicon rubber HT ( - 15°C ~ + 150C ) ; Fluorous rubber
Max pressure : 10 bar
Cylinder Material : Alloy Aluminum , anodizing
Output axle : 45 # electroplate
Piston material : alloy aluminum anodizing
Assemble with : Ball valve , Butterfly valve , Rotary valve.
|
Oder No. |
DN |
TRAVEL |
SEAL METERIAL |
STYLE |
OPERATION WAY |
|
RP-50-1000DA |
50-1000 |
900 |
Nitrile Rubber |
2 sections |
Double |
|
RP-50-1000SR |
50-1000 |
900 |
Nitrile Rubber |
2 sections |
Single |
|
RP-50-1000DA-LT |
50-1000 |
900 |
Silicon Rubber |
2 sections |
Double |
|
RP-50-1000SR-LT |
50-1000 |
900 |
Silicon Rubber |
2 sections |
Single |
|
RP-50-1000DA-HT |
50-1000 |
900 |
Fluorous Rubber |
2 sections |
Double |
|
RP-50-1000SR-HT |
50-1000 |
900 |
Fluorous Rubber |
2 sections |
Single |
|
RP-A50-1000DA |
50-1000 |
1200 |
Nitrile Rubber |
2 sections |
Double |
|
RP-B50-1000DR |
50-1000 |
1800 |
Nitrile Rubber |
2 sections |
Double |
|
RP-A50-1000DA-LT |
50-1000 |
900 |
Silicon Rubber |
2 sections |
Double |
|
RP-B50-1000DR-LT |
50-1000 |
900 |
Silicon Rubber |
2 sections |
Double |
|
RP-A50-1000DA-HT |
50-1000 |
900 |
Fluorous Rubber |
2 sections |
Double |
|
RP-B50-1000DR-HT |
50-1000 |
900 |
Fluorous Rubber |
2 sections |
Double |
