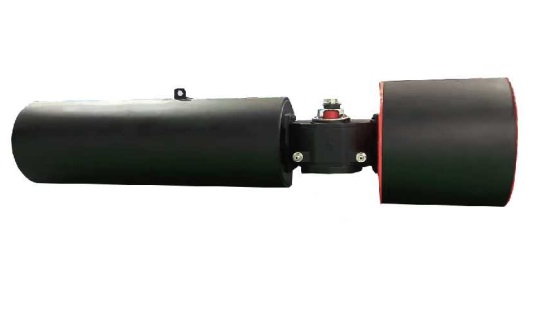

RPS Scotch And Yoke Actuator

RPS Scotch And Yoke Actuator

Valve Specifications

Cylinder Diameter: 300mm-1300mm

Constructional style: 2 sections

Travel length:90

Action style: Single and Double

Start and ending position:5

Temperature range: NBR(-20C+125°C); EPDM(-30°C +100 C);

Silicon Rubber(-40°C +110°C);

Max pressure:20 bar

Working Gas Source: Clean Air, Nitrogen

Body material: Cylinder+ ENP

Cylinder Material:Carbon steel

Output axle : 45 # electroplate

Piston material : 45 # electroplate

Installable Accessories

1.Solenoid Valve

2.Limit Switch

3.Positioner

4.Defend Valve

5.Pneumatic Valve

6.Air-filter regulator

7Valve Position Transmitter
