Series 20415

Series 20415

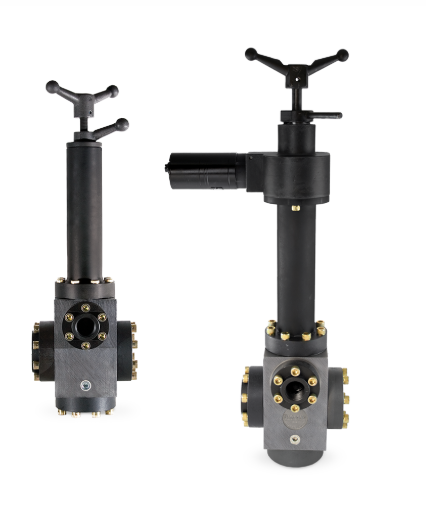

1" Pressure Regulator

Heavy Duty Shear-Seal® Regulator

Description

Barksdale's pressure regulators are sensitive pressure-control devices used to maintain a pre-determined pressure in a hydraulic circuit. The regulated output pressure can be controlled either by the force of a spring, or a motor (hydraulic or pneumatic). Design features ensure excellent accuracy, repeatability and high flow coefficients. Designed to provide years of trouble-free operation and virtually zero leakage, the Shear-Seal® design uses fluid pressure to maintain a leak-free metal-to-metal seal that improves with use. The shearing action between the rotor & pressure seal continually laps the mating surfaces and prevents contaminates from lodging between the sealing surfaces. The result is a valve that doesn’t wear out – but wears in over time, providing you superior control consistently through the entire life of the product.

Features

• Original Shear-Seal® technology
• Self-adjusting
• High flow capacity
• Tolerates contaminated media
• Fail-safe motor control options
• Self-venting

Applications

• Coiled tube reels
• Land-based oil drilling controls
• BOP control units

Series L20415

-----------------------
