Series 423,425,426
General Industrial Pressure Transducer and Transmitter (Amplified)
Series 423, 426
General Industrial Transducer and Transmitter 0-10,000 psi - available in 5V or 10V outputs
Series425
General Industrial Transducer and Transmitter 0-10,000 psi - available in 4-20mA output
Description

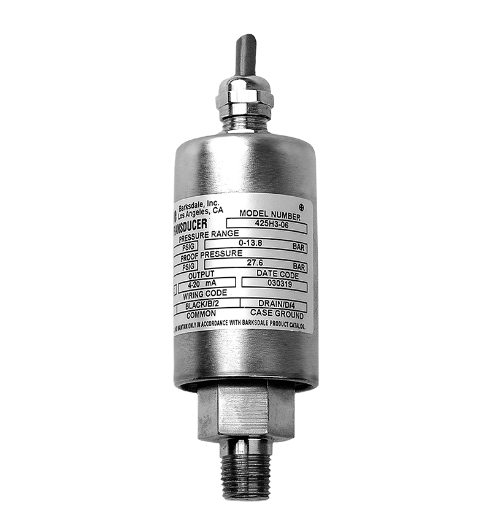

Barksdale's Series 423 and 426 Transducers and 425 Transmitters are general purpose, industrial grade pressure sensors, ideal for use in general industrial applications when a robust pressure transducer is required. Wetted parts are constructed of 17-4PH and 300 Series Stainless Steel, with NEMA 4 enclosures constructed of 304 Stainless Steel. These units feature a stable, diffused silicon sensor that achieves .25% accuracy, have pressure ranges from 0-10,000 psi and are available in 5V, 10V or 4-20 mA outputs. High pressure snubbers are standard on units at 2,000 psi and above. Optional surge voltage protection to 6kV is available. A variety of process fittings and electrical connections are available to meet your needs.
Features
- General purpose, industrial grade transducer and transmitter
- Diffused silicon sensor for high accuracy and reliability
- Rugged stainless steel enclosure
- Superior surge voltage protection and EMI/RFI immunity
- Built-in high pressure snubber (2000 psi and above)
- Current and voltage signals
- UL and cUL approved (UL508)
Applications
- Industrial hydraulic equipment
- Cranes
- Compressors
- Gas metering
- Vacuum machinery packaging
Pressure Switch
| Stt | Tên sản phẩm | Model |
| 1 | BARKSDALE 423T2-25 Pressure Transducer | 423T2-25 |
| 2 | Barksdale 425T4-04 Pressure Transducer | 425T4-04 |
| 3 | Barksdale 423H4-10 Pressure Transducer | 423H4-10 |
| 4 | BARKSDALE 423H3-17 Pressure Transducer | 423H3-17 |
| 5 | BARKSDALE 423H4-23 Pressure Transducer | 423H4-23 |
| 6 | BARKSDALE 423H3-19 Pressure Transducer | 423H3-19 |
| 7 | BARKSDALE 423H3-21 Pressure Transducer | 423H3-21 |
| 8 | BARKSDALE 423H4-03 Pressure Transducer | 423H4-03 |
| 9 | BARKSDALE 423H4-01 Pressure Transducer | 423H4-01 |
| 10 | BARKSDALE 423H4-04 Pressure Transducer | 423H4-04 |
| 11 | BARKSDALE 423H4-06 Pressure Transducer | 423H4-06 |
| 12 | BARKSDALE 423H4-08 Pressure Transducer | 423H4-08 |
| 13 | BARKSDALE 423H4-15 Pressure Transducer | 423H4-15 |
| 14 | BARKSDALE 423H4-17 Pressure Transducer | 423H4-17 |
| 15 | BARKSDALE 423H4-18 Pressure Transducer | 423H4-18 |
| 16 | BARKSDALE 423H4-22 Pressure Transducer | 423H4-22 |
------------------------
