Series MT1H, T2H

Remote Mount Temperature Switches

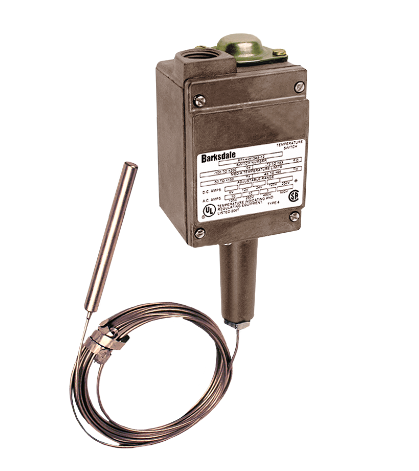

Remote Bulb and Capillary Temperature Switch, Temperature from -50° to 600°F

Description

Barksdale's MT1H & T2H Series Temperature Switches provide unmatched performance, quality & reliability in a mechanical thermostat. The single set point MT1H and dual set point T2H, can switch, measure & control temperatures from -50° to 650°F (-45° to 343°C), The optional adjustable differential provides precise control while ambient compensation maintains 1/2% accuracy with external temperatures from -65° to 165°F. The MT1H & T2H Series are electrically rated for 10 amps @ 125/250 VAC & 3 amps @ 480 VAC. Standard 3- & 6-pin terminal strips simplify installation. The MT1H & T2H Series are rated NEMA 4 & 13; the optional NEMA 4X construction protects the rugged die-cast aluminum enclosure from corrosive environments. A remote bulb and capillary sensor is available in copper or stainless steel allowing the switch to be mounted up to 25 feet from the temperature source. Optional thermowells allow the sensor to work in pressurized vessels to 5000 psi. UL listed & CSA approved, MT1H & T2H Series Temperature Switches are perfect for your temperature sensing needs.

Features

• Reliable & accurate
• Ambient temperature compensated
• NEMA 4, 13 UL, CSA & CE approved
• Single or dual switching

Applications

• Marine & shipbuilding

• Railroad
• Oil & gas
• Medical Compressors
• Water equipment
• Process equipmen
• Machine tools and industrial equipment

Pressure Switch

Series MT1H, T2H Datasheet

Series MT1H, T2H Operating instructions

Temperarture Switch Supplemental Guide

Temperature Switch Accessories

------------------------
