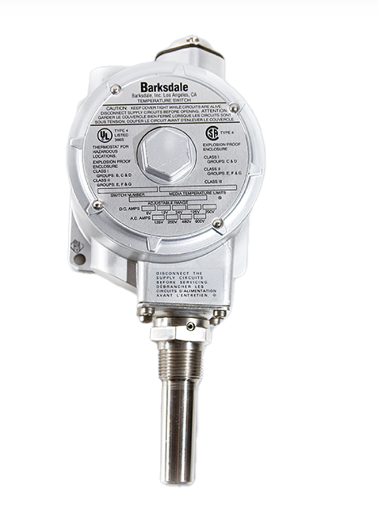

Series T1X, T2X, L1X

Explosion Proof Temperature Switches

Explosion Proof - from 50° to 600°F

Description

Barksdale's L1X, T1X & T2X Series Temperature Switches provide unmatched performance, quality & reliability in a mechanical thermostat - a safe solution for hazardous locations. The single set point L1X & T1X and dual set point T2X, can switch, measure & control temperatures from 50° to 650°F (-45° to 343°C), and meets Class 1, Div. 1 & 2 hazardous location requirements. The optional adjustable differential provides precise control. These switches can be mounted locally for control directly at the source or remotely up to 25 feet. The L1X, T1X & T2X Series are electrically rated for 10 amps @ 125/250 VAC & 3 amps @ 480 VAC. Standard 3 & 6 pin terminal strips simplify installation. The L1X, T1X & T2X Series are rated NEMA 4, 7 & 9 and incorporate stainless steel temperature sensors to handle a wide range of media. Optional thermowells allow the sensor to work in pressurized vessels to 5000 psi. The L1X, T1X & T2X Series are UL listed & CSA approved & ATEX Certified for hazardous zones within the European Community.

Features

• Explosion-proof for hazardous locations

• High accuracy
• Remote, local or ambient sensing
• UL, CSA & ATEX approved
• NEMA 4, 7, 9 & IP66

Applications

• Oil & gas
• Heat tracing
• Printing machinery
• Compressors
• Process equipment
• Machine tools and industrial equipment

Series T1X, T2X, L1X Datasheet

Series T1X, T2X, L1X Atex Certification

Series T1X, T2X, L1X Temp Guide

Series T1X, T2X, L1X Temperature Switch Accessories

------------------------
