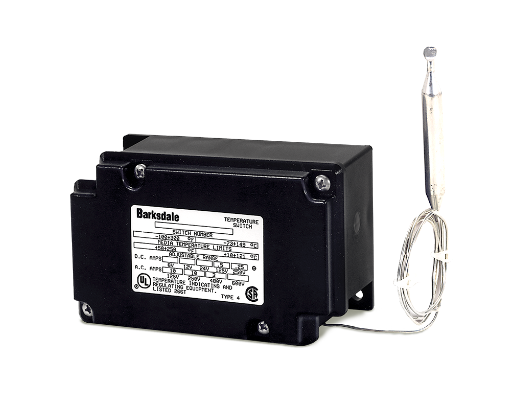

Series TPR

General Purpose Switch and Heat Tracing

For General Applications & Heat Tracing Temperatures from 15°-140°F

Description

Barksdale's TPR Series Temperature Switch adds flexibility to Barksdale's solid reputation for quality & reliability, and offers versatility for your temperature sensing needs. This switch is ideal for applications where freeze protection or lower temperature control is critical. The TPR is available in factory set and locked NEMA 4X configurations. The tin-plated sensor comes in 3 or 10 foot lengths. The TPR Series feature limit switches with 22 amps @ 125/250 VAC and 3 amps @ 480 VAC electrical ratings that allow thermostats to be used for higher current, heat tracing applications. The TPR Series is UL listed and CSA approved.

Features

• High Accuracy
• NEMA 4X & IP 65
• Compact, Economical Design
• UL, CSA and CE Approved
• Single Switch

Applications

• Heat trace
• Water equipment
• Process equipment
• Machine tools and industrial equipment
• Freeze protection

Series TPR Datasheet

Temperarture Switch Supplemental Guide

Temperature Switch Accessories

------------------------
