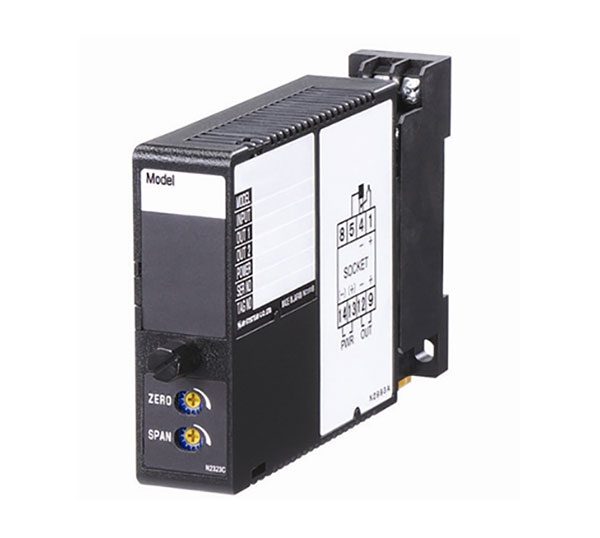

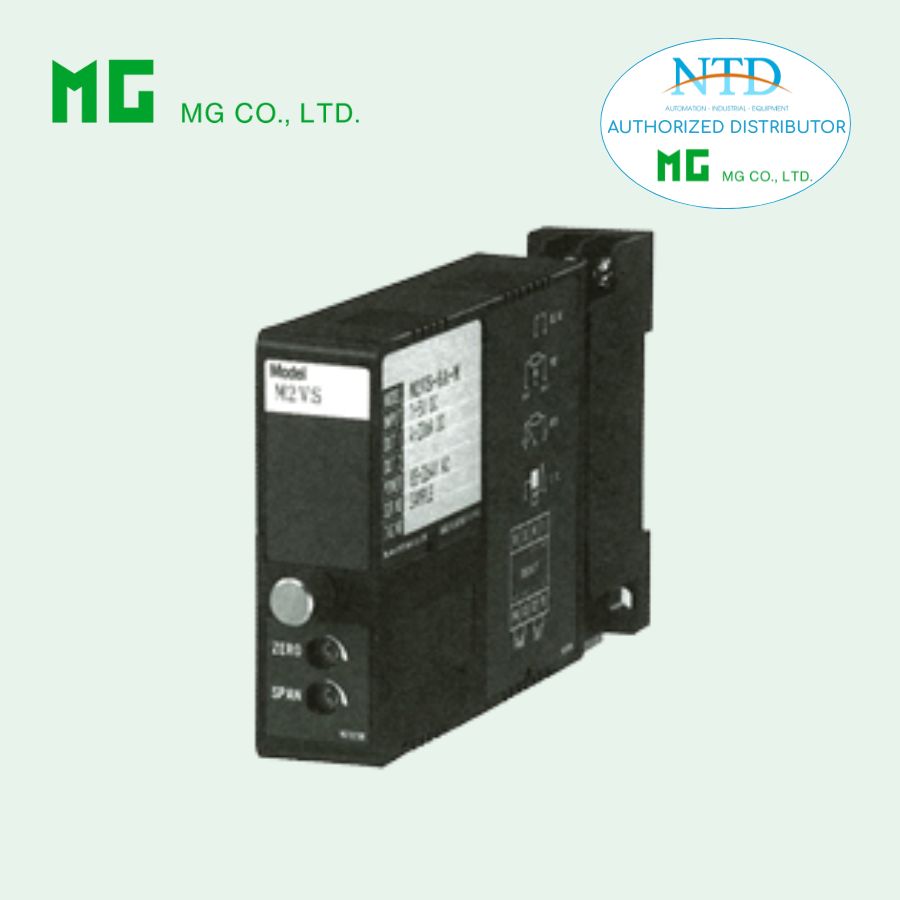

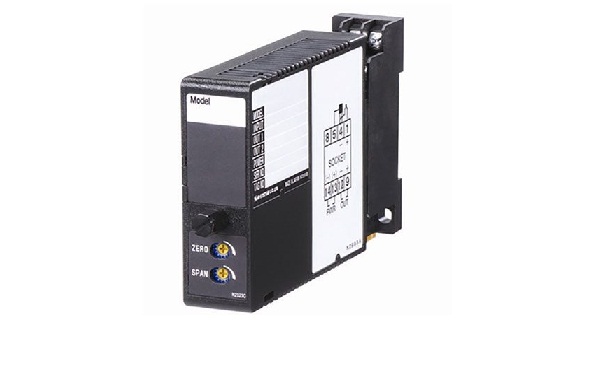

SIGNAL TRANSMITTER Series M2VS

SIGNAL TRANSMITTER

MODEL: M2VS

Bộ Chuyển Đổi Tín Hiệu

M2VS-AA-R

Functions & Features
• Converts DC input from a sensor into a standard process
signal
• Fast response type available
Typical Applications
 • Isolation between control room and field instrumentation

MODEL: M2VS–[1][2]–[3][4]

[1] INPUT

Current

A: 4 – 20 mA DC (Input resistance 250 Ω)

[2] OUTPUT

Current

A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[3] POWER INPUT

AC Power

M: 85 – 264 V AC (Operational voltage range 85 – 264 V, 47 – 66 Hz) (Select ‘/N’ for ‘Standards & Approvals’ code.)

[4] OPTIONS (multiple selections)
Response Time (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)

Bộ Chuyển Đổi Tín Hiệu: M2VS
