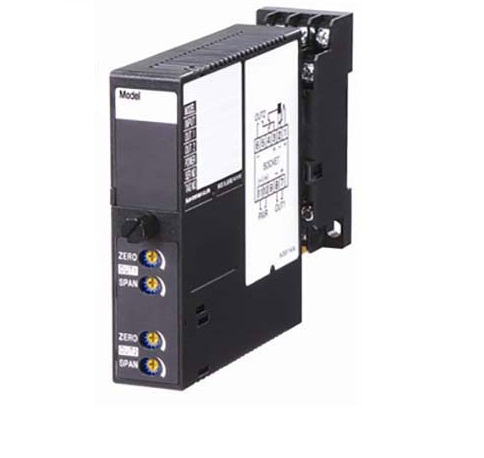

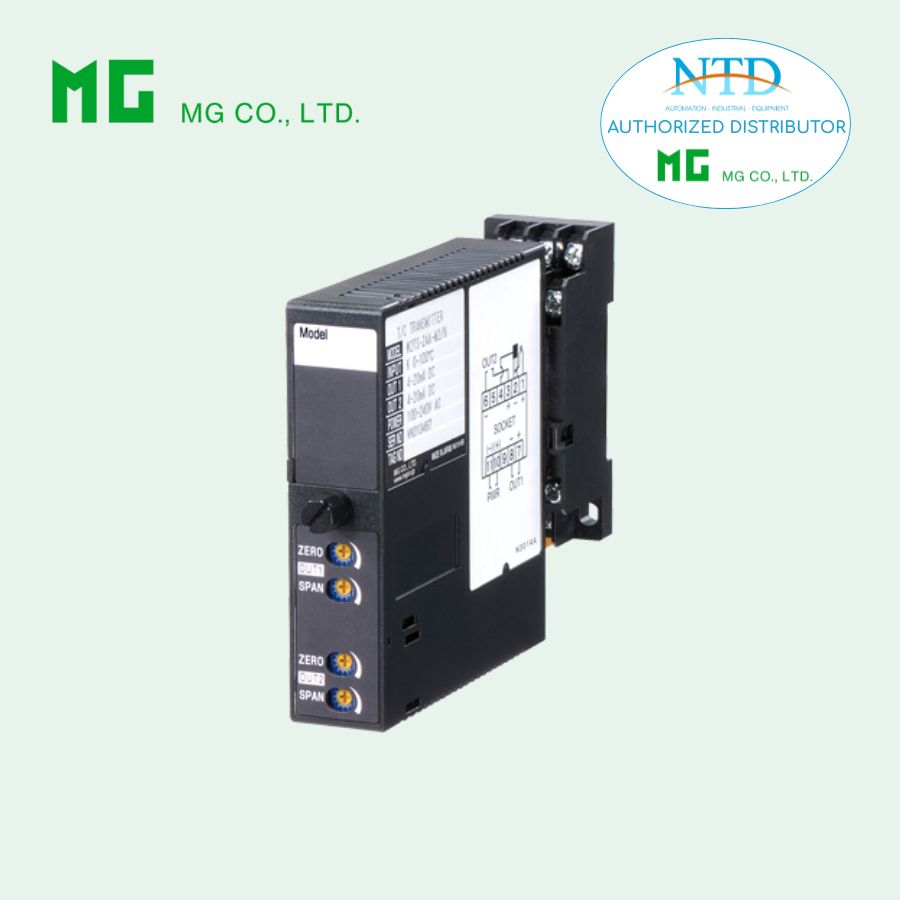

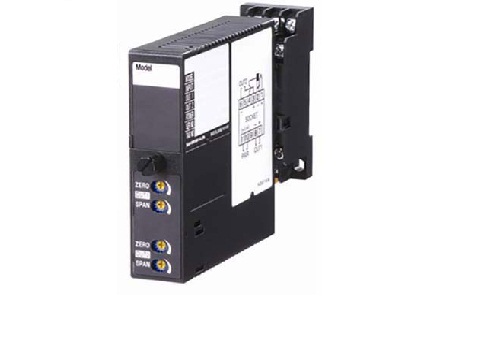

SIGNAL TRANSMITTER Series W2VS

SIGNAL TRANSMITTER

Model: W2VS

SIGNAL TRANSMITTER

Model:  W2VS-A6Y-R/CE

Functions & Features
• Converts DC input from a sensor into a standard process
signal
• Fast response type available
Typical Applications
 • Isolation between control room and field instrumentation

MODEL: W2VS–[1][2][3]-[4][5]

[1] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)

[2] OUTPUT 1
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[3] OUTPUT 2
Y: None
Current
A: 4 – 20 mA DC (Load resistance 350 Ω max.)

[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)

[5] OPTIONS (multiple selections)
Response Time (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)

SIGNAL TRANSMITTER Model: W2VS
