Asco -Solenoid Valve-2 Way: 2/2-ASCO Series 215

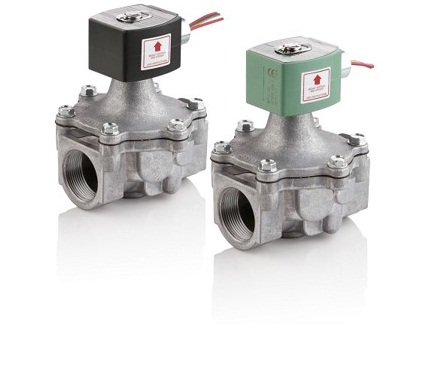

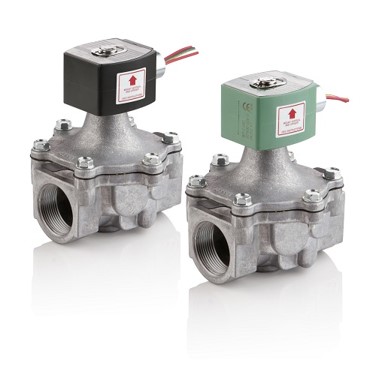

Solenoid Valve - 2 Way: 2/2 - ASCO Series 215
Model: 8215B080CSA 120/60,110/50
Thông số chung:
Type: Solenoid Valve
Body Material: Aluminum
Media Type: Air, Inert Gas;Fuel Gas
Valve Actuation: Solenoid - Direct Acting
Voltage: 110 AC;120 AC
Max Ops Pressure(PSI): 25
Function: 2 way - 2/2 Normally Closed
Pipe Size: 2
Catalog Number: 8215B080CSA 120/60,110/50
General Information
Order Code 00589
Shipping Weight 5.34 lb
Catalog Page
Kit Number 302353
Listed In Catalog 34
Operating Pressure Ratings PSI
Operating Air Pressure (Min-Max) -25
Technical Information
Actuation Method Solenoid - Direct Acting
Body Material Aluminum
Coil Class FT
Coil Number 099257-001-D
I&M Pressure Vessel
I&M Solenoid
V_5381_R9.pdf
V_6950_CH.pdf
V_6950_R8.pdf
Pipe or Port Size 2
Max Ambient Temperature 125.00 F
Min Ambient Temperature 32.00 F
Max Fluid Temperature 125.00 F
Min Fluid Temperature 32.00 F
Mounting Bracket(s)
Orifice Size 2-3/32 in
-------------------------------------
