Fantinelli - Solid front safety pressure gauges

Solid front safety pressure gauges

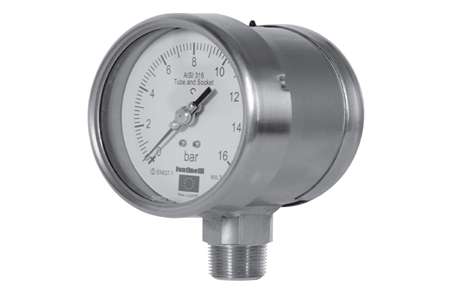

SF 316 with stainless steel casing

• stainless steel or Ni-Span C or Monel Bourdon tube pressure element;
• NS 100 - 150;
• ranges included between -1 and 4000 bar.

SF 317 with phenolic casing

• stainless steel or Monel Bourdon tube pressure element;
• NS 125 (4 1/2”);
• ranges included between 1 and 1000 bar.


Solid front pressure gauges are manufactured as per EN 837-1 and ASME B40.1. During the design of this type of pressure gauges, “safety” factor is taken into great consideration. Safety is guaranteed by a protection baffle wall positioned between the pressure element assembly and the dial, and by a blow-out device made of a back plate which allows an eventual pressure vent from the casing.

mod. SF 316

Solid front pressure gauge with pressure connection for ranges 2500 and 4000 bar

mod. SF 317

Solid front pressure gauge with bottom connection for local or surface mounting
