Yamari - Special Sensor

This wafer sensor was developed to accurately reproduce the temperature profile of silicon wafers in wafer processing equipment. Users have now challenging us to further improve its quality by achieving a reproducibility of 0.1℃.

Chemical cleaning to remove scale from inner surface of boiler tubes has periodically been conducted to prevent accidents of overheating, hydrothermal eruption and blowout breakage. In order to minimize the cleaning frequency, appropriate grasp of timing of the chemical cleaning is important, and accurate temperature measurement of waterwall tubes is required. “Embedded-in-Grooves” type waterwall tubeskin thermocouples, co-developed with the Central　Research Institute of Electric Power Industry in Japan for high durability, accuracy and workability, have been widely used by customers.

The spring-devised design provides positive contact pressure between the sensing tips and the inside wall of the thermowell and the flexible support plate facilitates the installation and prevents the damage to sensing tips.

① Excellent response by virtue of spring effect.
② Can be applied to the existing well in the field.
③ Easy handling in a looped form.
④ Equally fit to somewhat deformed or curved wells
　　by means of flexible support plate.
⑤ Expected maximum service temperature 500℃

Each thermocouple is fixed to the bimetals.The bimetals spread out in tight contact with the inside wall of the protecting tube at the operating temperature and the pads that thermocouple are fixed are also pressed against the inside wall of the protecting tube.

① The thermocouple can be inserted to the protecting tube smoothly
　　because bimetals are closed at the normal temperature.
② The bimetals spread out in tight contact with the inside wall of the
　　protecting tube at the operating temperature.
③ Easy to be removed as the bimetallic fins are closed.

Model HT-270 　thermocouple is a heavy duty version of the already proven　HT THERMIC series of our inert gas filled high temperature thermocouples which was developed for a long term-measurements OXIDIZING/REDUCING ATMOSPHERES.

Conductors：Type K or N φ8.0
Accuracy 　：Class 1 or 2
Sheath Material：Hastelloy X, 310S

LNG tank sensor requires high accuracy and stability at extremely low temperatures. Utilizing our technological expertise of sensor manufacturing and calibration technology accreditated JCSS (Japan Calibration Service System) for the wide temperature range, Yamari can produce a 170 meters-long RTD thermometer with an accuracy of class A or better. Yamari is presently certified under IICT6 Explosion-Proof in many countries for various sensors including multi-point sensors.

The measuring atmosphere is very harsh in high temperature,high pressure and high steaming velocity ,sensor must have the following features.

・ High Quality SIC Protection Tube
・ Sealed Structure on T/C wire
・ Long Life Structure on type R thermocouple

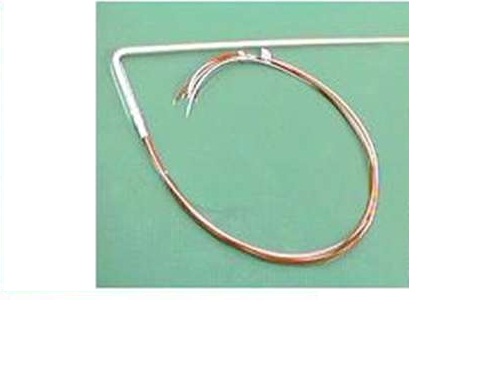

This is a unique sensor developed to measure the erosion profile by the two point method which measures the temperature difference (Δt) between two points inside the carbon brick by using two thermocouples.

Type：TPCK Maximum Temperature：350℃

Advantages
1.Ease of use because of its flexibility
2.Contineous use up to 350℃
3.Connectable to thermocouple connector
4. Hot junction can be made upon request.
