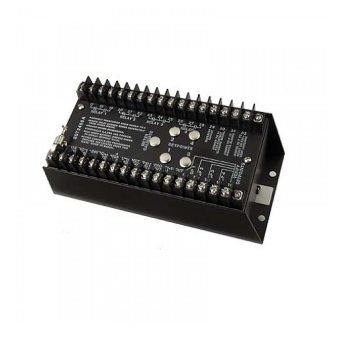

SST-2000 Series

SST-2000 Series

Speed Transmitter and Switches

CSA and CE Approvals

Description

SST-2000A Speed Transmitter

SPEED TRANSMITTER, CSA General Classification and CE approved

Receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs.

The SST-2000A/H Speed Transmitter series is a highly configurable product.

SST-2000H Speed Transmitter

SPEED TRANSMITTER: CSA: Cls I, Div 2, Grp C,D

Receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA and CE approved.

The SST-2000A/H Speed Transmitter series is a highly configurable product.

SST-2200A Speed Switch

SPEED SWITCH: over/under speed protection, transmitter with 2 standard relay setpoints, CSA General Classification

The SST-2200A has 2 relay setpoints and receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA, CE approved.

The SST- 2000A/H Speed Switch series is a highly configurable product.

SST-2200H Speed Switch

SPEED SWITCH: over/under speed protection, transmitter with 2 sealed relay setpoints, CSA: Cls I, Div 2, Grp C,D.

The SST-2200H has 2 sealed relay setpoints and receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA, and CE approved.

The SST-2000A/H Speed Switch series is a highly configurable product.

SST-2400A Speed Switch

SPEED SWITCH: over/under speed protection, transmitter with 4 standard relay setpoints, CSA General Classification

The SST-2400A has 4 relay setpoints and receives signal input from a passive or active magnetic pickup, shaft encoder, contact closure, flowmeter, etc. to provide proportional analog outputs. Approvals: CSA General Classification, and CE approved.

The SST- 2000A/H Speed Switch series is a highly configurable product.

SST-2400H Speed Transmitter

SPEED TRANSMITTER CSA Class 1, Division 2, Groups C, D Approvals: CSA and CE approved.

The SST-2000A/H Speed Transmitter series is a highly configurable product.

Features

• Proportional outputs of either 4–20 mA (standard), 0–5 Vdc, or 0–10 Vdc are field selectable. Standard 0-1 mAdc meter output included.
• Models available with up to four alarm setpoints.
• Field-selectable frequency range.
• Field-adjustable sensitivity control.
• Field-programmable for many types of sensors, including contact closure input.
• Repeater output drives counters and self-powered digital tachometers such as Dynalco’s SPD-100 and SPD-700.
• Regulated 14 Vdc output powers active pickups (e.g. M910), accessories, and digital meters such as DPM-105 or MTH-103D, and the 12 Vdc versions of the internally lighted SPD-100L and LST-100L.
• Alarms are field-configurable for DPDT (SST-2400 A or -H only), overspeed, underspeed, energize, de-energize, latch, auto-reset.
• Integral VERIFY, requires external meter. Permits viewing and setting of setpoint value without actuating the relays.
• Input Frequency: Full-scale values from 0–0.1Hz (6 pulses per minute) to 0–50,000 Hz.
• Function: Converts frequency input (speed, rate) into linear proportional dc output. Provides alarm setpoints for over- and underspeed control and for sequential, startup, and shutdown switching.
• Signal Sources: Includes magnetic pickups, ac generators, contact closures, photocells.
• Output Range Capability: Current source up to 50 mAdc output always included.
• Alarm Setpoints: Available with two or four relays. Also available with no relays

Applications

• Engines

• Machines
• I/P drivers
• Instrumentation
• Process control
• Recording
• Measurement
