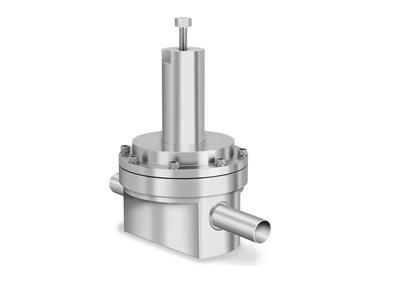

15 Series is designed for ultra high flow applications of up to 28,300 SLPM. The 15 Series is an ultra high purity, 10 Ra, bulk gas pressure reducing regulator. Inlet of 300 psig / 20.7 bar, outlet up to 150 psig / 10.3 bar. Electronically controlled option is available. Ideal for use in facility bulk gas delivery.

Pressure Rating

Maximum Inlet Pressure: 300 psig / 20.7 bar
Outlet Pressure Ranges: 130 and 150 psig / 9.0 and 10.3 bar

Material

Body: 316L Stainless Steel
Diaphragm or Bellows: 316L Stainless Steel
Seat: PCTFE or Teflon®
Seal: Viton®
Remaining Parts: 316L Stainless Steel

Operating Temperature

-20°F to 150°F / -29°C to 65°C

Port Size & Type

3/4 Tubes
1 Tubes
1-1/2 Tubes
2 Tubes

Flow Capacity

Diaphragm: Cv = 8.0
Bellows: Cv = 14.0

Load Type

Spring, Air-actuated

Weight

55 lbs / 24.9 kg

Additional Information

For custom modifications or a complete system solution, please contact your local sales office.
