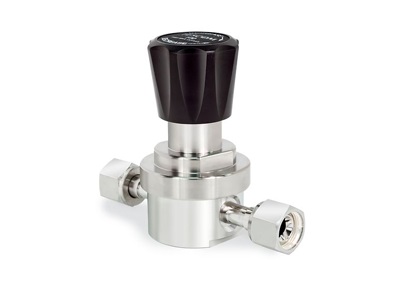

TESCOM™ 22-5400 Series Electropolished Pressure Regulator




22-5400 Series high purity, high flow BA Grade pressure reducing regulator offers a Cv = 1.0 and a 316 Stainless Steel Electropolished body of 25 Ra. Inlet pressure is 600 psig / 41.4 bar with outlet pressures up to 150 psig / 10.3 bar. Ideal for use in high flow purging, regulating corrosive and specialty gases, and bulk gas delivery.



Specifications


Pressure Rating
Maximum Inlet Pressure: 600 psig / 41.4 bar
Outlet Pressure Ranges: 30, 60, 100, 150 psig / 2.1, 4.1, 6.9, 10.3 bar
Material
Body: 316L Stainless Steel with Electropolish
Diaphragm: Hastelloy®
Valve Seat: PCTFE or Teflon® PFA
Stem, Seal & Remaining Parts
316 Stainless Steel
Operating Temperature
Teflon® PFA Seat: -40°F to 160°F / -40°C to 71°C
PCTFE Seat: -40°F to 140°F / -40°C to 60°C
Port Size & Type
3/8 O.D. Tube
1/2 O.D. Tube
1/2 Male Swivel
1/2 Female Swivel
3/8 Compression Fitting
1/2 Compression Fitting
Flow Capacity
Cv = 1.0
Load Type
Hand
Weight (without gauges)
3.5 lbs / 1.6 kg

Catalog-series-22-5400-electropolished-pressure-regulator-tescom-en-5322062.pdf
