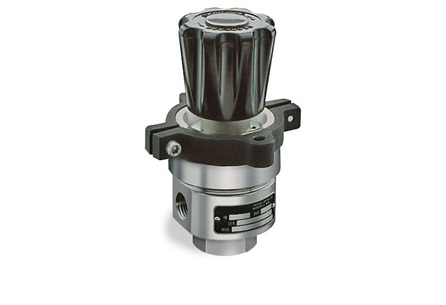

26-1500 Series non-venting regulator offers a sensitive, large elastomeric diaphragm design and precision outlet pressure control. Ideal for use in research labs, breathing air diving manifolds, low flow purge systems, gas and liquid sampling

Maximum Inlet Pressure

Stainless Steel: 6000 psig / 414 bar
Brass, Aluminum: 5000 psig / 345 bar

Outlet Pressure Ranges

0-50, 0-150, 0-250 psig / 0-3.4, 0-10.3, 0-17.2 bar

Body Material

316 Stainless Steel, Brass, Aluminum

Bonnet Material

300 Series Stainless Steel

40 Micron Filter Material

316 Stainless Steel

Seat Material

CTFE

O-Rings & Diaphragm Material

Buna-N

Remaining Parts Material

300 Series Stainless Steel

Ambient Operating Temperature and Fluid Media Temperature

-40°F to 165°F / -40°C to 74°C

Port Size & Type

SAE, NPTF, MS33649
1/4, 3/8, 1/2 (Stainless Steel only)

Flow Capacity

Cv = 0.08

Load Type

Spring

Weight (without gauges)

3 lbs / 1.4 kg
