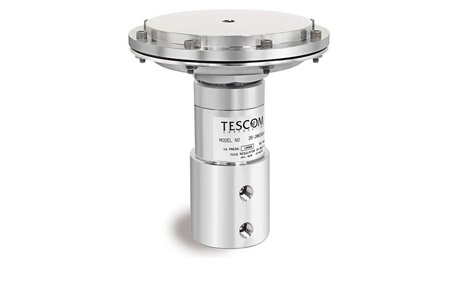

26-2000 Series high pressure, low flow piston sensed regulator is available in dome, spring and air load versions. This regulator comes with segregated captured venting standard with inlet pressure ratings of 6000-15,000 psig / 413-1034 bar. Ideal for use in R & D labs, pressure filling, calibration testing, burst testers, component testing and high pressure hydraulic or pneumatic applications

Pressure Rating

Maximum Inlet Pressure and Maximum Outlet Pressure: See Part Number Selector

Material

Body: 316 Stainless Steel or Brass
Seat, Vent, Main Valve, O-Ring: See Part Number Selector
Back-up Ring: Teflon®

Filter

  26-201XX-XX: Bronze
  26-202XX-XX: 300 Series Stainless Steel

Remaining Parts

316 Stainless Steel and 17-4 Stainless Steel

Operating Temperature

-15°F to 165°F / -26°C to 73°C

Port Size & Type

1/4, 3/8, 1/2
SAE, NPTF, MS33649, High Pressure/Aminco, Medium Pressure/Slimline
Vent Port: 1/4 SAE, 1/4 NPTF, 1/4 MS33649

Flow Capacity

Cv = 0.02, 0.06, 0.12, or 0.30

Load Type

Spring, Dome, Air

Weight (approximately)

5.5 lbs / 2.5 kg
