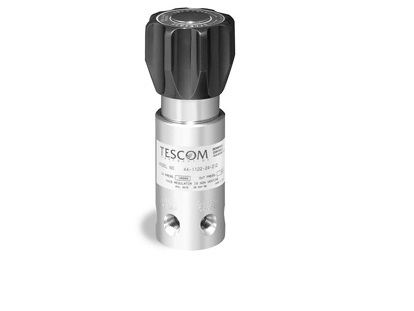

44-1100 Series high pressure, low flow venting regulator offers a piston sensed design, control pressures of 6000-10,000 psig / 414-690 bar, a low torque setting and large handknob. Multiple pressure range kits are available. Ideal for use in Ground Support Equipment (GSE), support pressure panels, aircraft charging carts, R & D laboratories and calibration equipment

Maximum Inlet Pressure

Stainless Steel: 10,000 psig / 690 bar
Brass: 6000 psig / 414 bar

Outlet Pressure Ranges

0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000 psig
0-34.5, 0-55.2, 0.69-103, 1.0-172, 1.7-276, 3.4-414 bar

Material

Body: Brass, 303, or 316 Stainless Steel
Main Valve Seat: Vespel®
Vent Valve Seat: CTFE
O-Rings: Buna-N
Back-up Rings: Teflon®

Remaining Parts

300 Series Stainless Steel

Filter Material

  Brass Body: 40 micron (nominal) - Bronze
  Stainless Steel Body: 15 micron (nominal) - 316 Stainless Steel

Operating Temperature

-40°F to 165°F / -40°C to 75°C

Port Size & Type

1/4 NPTF

Flow Capacity

Cv = 0.06

Load Type

Spring

Weight

4.8 lbs / 2.2 kg
