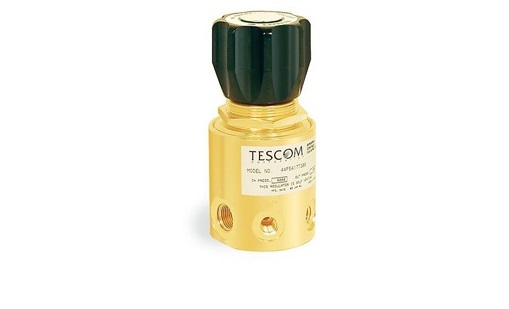

44-1500 Series high flow/low pressure regulator controls outlet pressures up to 600 psig / 41 bar. Large area piston provides accurate pressure control and cycle life superior to diaphragm sensed regulators when applied to heavy duty cycling. Features a segregated / captured vent for hydraulic or pneumatic media and is available in two outlet spring ranges. Optional dome or air loaded versions for remote operation or for use with the ER5000 Electropneumatic Controller for automation. Ideal for use in hydraulic and pneumatic testing.

Maximum Inlet Pressure

6000 psig / 414 bar

Outlet Pressure Ranges

  Spring Load: 0-200, 0-400 psig / 0-14, 0-28 bar
  Air/Dome Load: 0-600 psig / 0-41 bar

Material

Body: 316 Stainless Steel or Brass
40 Micron Filter: Bronze
Main and Vent Valve Seats: Vespel® SP21
Back-up Rings: Teflon®

O-Ring

Buna-N, Viton®, Kalrez®, Ethylene Propylene

Remaining Parts

300 Series Stainless Steel, Brass, Monel

Ambient Operating Temperature

-15°F to 165°F / -26°C to 74°C

Port Size & Type

Inlet & Outlet Port Size: 3/8, 1/2
Inlet & Outlet Port Type: SAE, NPTF, MS33649
Vent Port: 1/4 SAE, 1/4 NPTF, 1/4 MS33649

Flow Capacity

Cv = 0.3

Load Type

Air, Dome, Spring

Weight

4.75 lbs / 2.2 kg
