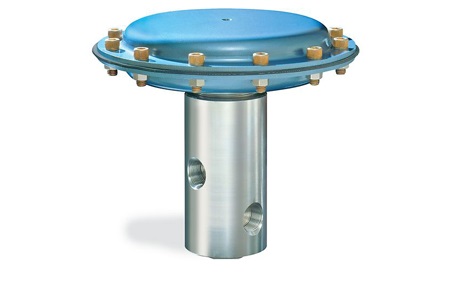

54-2200 Series pressure reducing regulator is designed for high flow and high pressure hydraulic applications. Inlet and outlet pressure is rated up to 8000 psig / 552 bar with Cv = 2.0 for flows up to 60 GPM / 127 LPM. Spring, air and dome loaded versions are available. Hardened Stainless Steel seat and poppet delivers excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP), hydraulic power units (HPU) and hydraulic component testing

Maximum Inlet Pressure

8000 psig / 552 bar

Outlet Pressure Ranges

1500, 3000, 5000, 6000, 8000 psig / 103, 207, 345, 414, 552 bar

Regulator VENTS to 0 psig in all pressure ranges

Material

Body: 303 or 316 Stainless SteelSeat, Main Valve, Sensor: 17-4 PH Stainless SteelO-Rings: Buna-N, Viton-A®, Kalrez®, Ethylene PropyleneBack-up Rings: Teflon®

Bonnet, Remaining Parts

303 Stainless Steel

Ambient Operating Fluid Media Temperature

-40°F to 200°F / -40°C to 93°C (Varies with sealing material selected, please consult TESCOM)

Port Size & Type

3/4
SAE, NPTF, MS33649
1/2, 1
Flange

Flow Capacity

Main Valve: Cv = 2.0
Vent Valve: Cv = 1.6

Load Type

Spring, Dome, Air

Weight (approximately)

15 lbs / 6.8 kg
