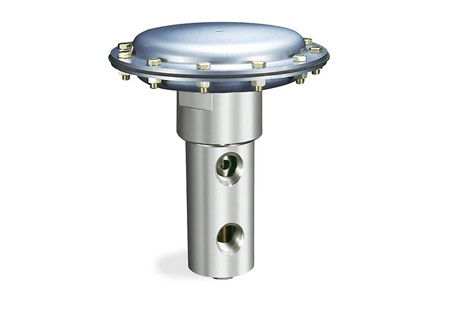

54-2800 Series high pressure, high flow, pressure reducing regulator is designed for hydraulic applications. Inlet and outlet rated up to 5000 psig / 345 bar; Cv = 8.0 for high flows. Air operated and dome loaded versions are available. Hardened Stainless Steel seat and poppet for excellent wear resistance. Ideal for use in hydraulically operated blowout preventers (BOP) and hydraulic component testing

Pressure Rating

Maximum Inlet Pressure: 5000 psig / 345 bar
Outlet Pressure Ranges: 50-1500, 200-5000 psig / 3.4-103, 13.8-345 bar

Body Material

303 Stainless Steel

Seat, Poppet, Sensor

17-4 PH Stainless Steel

O-Rings

Buna-N, Viton®, Ethylene Propylene, Kalrez®

Back-up Rings

Teflon®

Remaining Parts

300 Series Stainless Steel

Operating Temperature

-0°F to 165°F / -17°C to 74°C
*For extended temperatures up to 350°F / 177°C, consult TESCOM

Port Size & Type

Inlet & Outlet Port Type: SAE, NPTF
Inlet & Outlet Port Size: 1

Flow Capacity

Main Valve: Cv = 8.0
Vent Valve: Cv = 6.5

Load Type

Dome, Air

Weight

35 lbs / 15.9 kg
