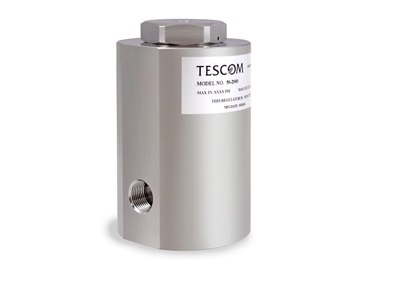

TESCOM™ 56-2000 Series Pressure Control Regulator

Liên hệ Còn hàng

TESCOM™ 56-2000 Series Pressure Control Regulator




56-2000 Series provides accurate pressure control that allows customers to have consistent injection rates over the life of the well. Ideal for Offshore Chemical Injection applications.



Specifications


Pressure Rating
Maximum Inlet Pressure: 15,000 psig / 1034 bar
Maximum Outlet Pressure: 200-15,000 psig / 13.8-1034 bar
(non-adjustable spring bias pressure: 175-200 psig / 12-13.8 bar)
Material
Body: 17-4 Stainless Steel
Seat, Main Valve: Vespel® SP1
O-Ring: Buna-N
Back-up Ring: CTFE
Remaining Parts: 300 Series Stainless Steel, 17-4 Stainless Steel and Nitronic 60
Operating Temperature
-15°F to 165°F / -26°C to 74°C
2 For extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.
Port Size & Type
Inlet & Outlet Port Type: Medium Pressure
Inlet & Outlet Port Size: 9/16
Flow Capacity
Cv = 0.06
Weight (approximate)
13 lbs / 5.9 kg

Catalog-56-2000-series-pressure-control-regulator-tescom-en-5349016.pdf
