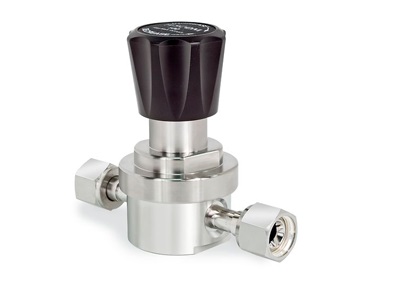

64-5400 Series high purity pressure reducing regulator provides 316 Stainless Steel with Electropolish, 10 Ra surface finish and Hastelloy® diaphragm design. The 64-5400 Series offers high flow Cv = 1.0 and inlet pressure of 600 psig / 41.4 bar with outlet pressures up to 150 psig / 10.3 bar. Ideal for us in Bulk Specialty Gas Systems (BSGS), 1/2" point-of-use, tool hookups and gas cabinets.

Pressure Rating

Maximum Inlet Pressure: 600 psig / 41.4 bar
Outlet Pressure Ranges: 30, 60, 100, 150 psig / 2.1, 4.1, 6.9, 10.3 bar

Body Material

316L Stainless Steel Electropolish or 316L VAR Stainless Steel Electropolish

Diaphragm

Hastelloy®

Valve Seat

PCTFE or Teflon® PFA

Seat Retainer

Nitronic 60 Stainless Steel

Stem, Seal & Remaining Parts

316 Stainless Steel

Operating Temperature

Teflon® PFA Seat: -40°F to 160°F / -40°C to 71°C
PCTFE Seat: -40°F to 140°F / -40°C to 60°C

Port Size & Type

3/8 Tube Stubs
1/2 Tube Stubs
1/2 Male Swivel
1/2 Female Swivel
3/8 Compression Fitting
1/2 Compression Fitting

Flow Capacity

Cv = 1.0

Load Type

Hand

Weight (without gauges)

3.5 lbs / 1.6 kg

Additional Information

For custom modifications or a complete system solution, please contact your local sales office.
