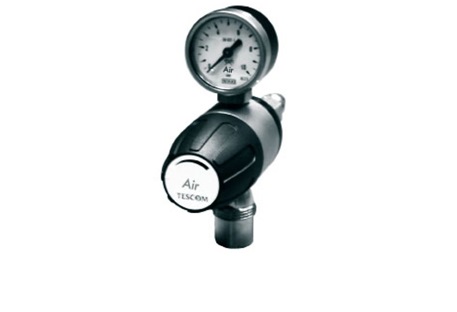

Single stage adjustable pressure regulator according to DIN EN ISO 10524-4 for the reduction of pressurised medical gases. CE-mark according to the Medical Device Directive 2007/47/EC. It can be connected to a Central Gas Supply System (Flow Switch)

Maximum Inlet Pressure

73 psig / 5 bar CG Pressure Regulator II D45715
203 psig / 14 bar CG Pressure Regulator II D45714

Outlet Pressure

58 psig / 4 bar CG Pressure Regulator II D45715
145 psig / 10 bar CG Pressure Regulator II D45714

Temperature Range

Operation: 50°F to 104°F / 10°C to 40°C
Storage: -4°F to 158°F / -20°C to 70°C

Fluid Media

CG Pressure Regulator II D45715: med. O2, Air, CO2, Air/O2, N2O
CG Pressure Regulator II D45714: Air

Weight

1.43 lbs / 0.65 kg
