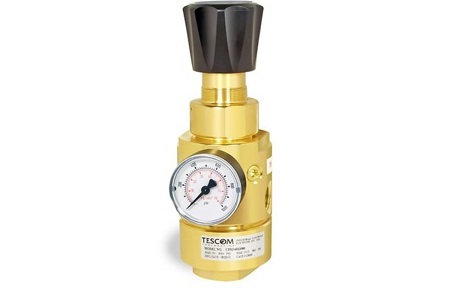

CP3200 Series self-contained pilot-operated high flow, high pressure, dome loaded regulator is designed for gas flows up to 1200 SCFM / 34,000 SLPM. Ideal for use in laser assist and resonator gases. Suitable for tank purging.

Pressure Rating

Maximum Inlet Pressure: 3000 psig / 207 bar
Maximum Outlet Pressure Range: 0-500 psig / 0-34.5 bar

Body Material

316 Stainless Steel, Brass

Seat & Seal

CTFE, Teflon®

O-Rings

Buna-N, Viton®

Retainer, Seat

Nitronic 60 or Brass

Spring & Diaphragm

316 Stainless Steel

Remaining Parts

316 Stainless Steel, Brass

Operating Temperature

-15°F to 140°F / -26°C to 60°C
*For extended temperatures from -40° to 400°F / -40°C to 177°C, consult TESCOM

Port Size & Type

1/2 NPTF

Flow Capacity

Cv = 1.0

Load Type

Dome

Weight

3.5 lbs / 1.6 kg
