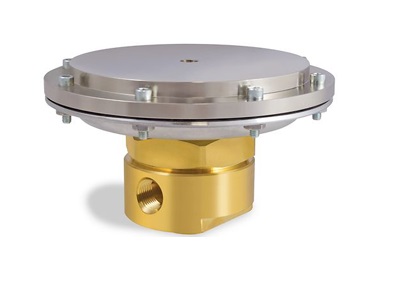

DK Series regulator improves control and resolution at medium flow and pressures. The DK can be paired up with the 26-1600 regulator for remote control capability or combined with the ER5000 for remote automated and precise pressure control to ±0.1%. Ideal for use in component testing and development, flow meter calibration, burst and proof testing, superplastic metal forming, vacuum forming, catheter testing or rapture disk testing, sensor and gauge calibration and test. Suitable for coating applications.

Pressure Rating

Maximum Inlet Pressure: 1000 psig / 69.0 bar
Maximum Outlet Pressure
Air Load: 0-600 psig / 0-41.4 bar
Dome Load: 0-700 psig / 0-48.3 bar

Body, Bonnet, Back-cap Ring

Brass, 316 Stainless Steel

Diaphragm & O-Rings

Buna-N, Ethylene Propylene, Viton®

Seat, Main Valve

CTFE, Teflon®, Vespel®

40 Micron Filter Material

Sintered Brass, 316 Stainless Steel

Remaining Parts

300 Series Stainless Steel, Brass

Operating Temperature

-15°F to 165°F / -2°C to 74°C

Port Size & Type

1/4, 3/8, 1/2 SAE
1/4, 3/8, 1/2 NPTF

Flow Capacity

Cv = 0.35

Load Type

Dome, Air

Weight

Dome Load: 3.5 lbs / 1.6 kg
Air Load: 5.5 lbs / 2.5 kg

Additional Information

For custom modifications or a complete system solution, please contact your local sales office.
