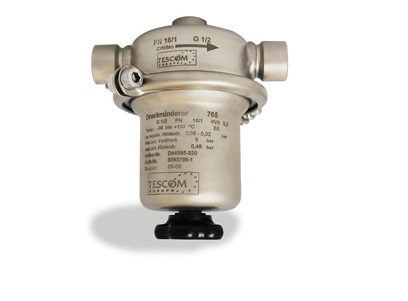

Regulus Stainless Steel inline pressure reducing regulator provides accurate regulation in mbar range without external energy. Ideal for applications where very low outlet pressures are requested in combination with low to medium flows.

Pressure Rating

Maximum Inlet Pressure: 116 psig / 8.0 bar
Outlet Pressure Ranges
0.4-1.7 psig / 28-117 mbar
1.2-4.6 psig / 83-317 mbar
2.9-11.6 psig / 200-800 mbar

Material

Body: Stainless Steel
Diaphragm: EPDM
Seat: EPDM

Port Size & Type

Inlet, Outlet, Gauge: G 1/2

Operating Temperature

-4°F to 176°F / -20°C to 80°C

Fluid Media

Non corrosive and corrosive gases up to gas purity 5.0 (99.999 Vol%) which are compatible with the material of construction.

Nominal Flow Rate

50 SLPM / 0.3 m3/h
100 SLPM / 6 m3/h
150 SLPM / 9 m3/h

Weight

3.3 lbs / 1.5 kg
