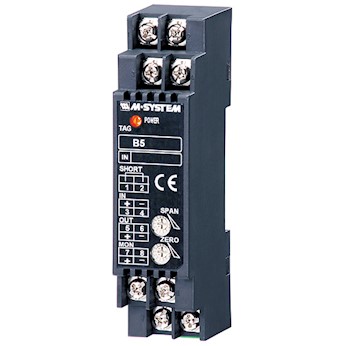

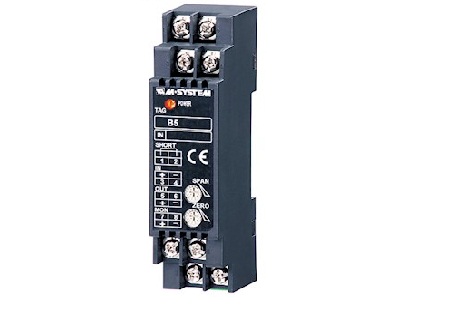

THERMOCOUPLE TRANSMITTER Model: B5TS

THERMOCOUPLE TRANSMITTER

Model: B5TS

THERMOCOUPLE TRANSMITTER

Model: B5TS - 2

Functions & Features
• Accepts direct input from a thermocouple and provides an
isolated 4 – 20 mA DC signal
• Linearization and burnout
• Cold junction compensation
• Monitor terminals
• High-density mounting
• Power LED


MODEL: B5TS–[1][2]

[1] INPUT THERMOCOUPLE
1: (PR) (Usable Range 0 to 1760°C, 32 to 3200°F)
2: K (CA) (Usable range -270 to +1370°C, -454 to +2498°F)
3: E (CRC) (Usable range -270 to +1000°C, -454 to +1832°F)
4: J (IC) (Usable range -210 to +1200°C, -346 to +2192°F)
5: T (CC) (Usable range -270 to +400°C, -454 to +752°F)
6: B (RH) (Usable range 0 to 1820°C, 32 to 3308°F)
7: R (Usable range -50 to +1760°C, -58 to +3200°F)
8: S (Usable range -50 to +1760°C, -58 to +3200°F)
N: N (Usable range -270 to +1300°C, -454 to +2372°F)
0: Specify

[2] OPTIONS (multiple selections)
Response Time (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
Burnout
blank: Upscale burnout
/BL: Downscale burnout
/BN: No burnout
Other Options
blank: none
/Q: Option other than the above (specify the specification)


THERMOCOUPLE TRANSMITTER Model: B5TS

-------------------------------------
