THERMOCOUPLE TRANSMITTER Series M2TS

THERMOCOUPLE TRANSMITTER

Series M2TS

THERMOCOUPLE TRANSMITTER

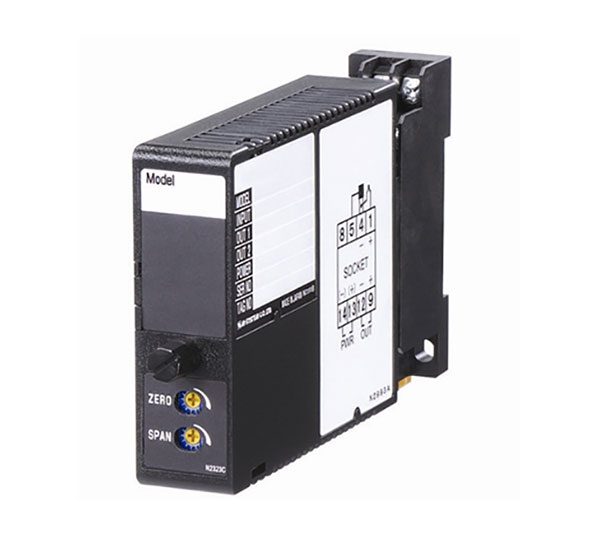

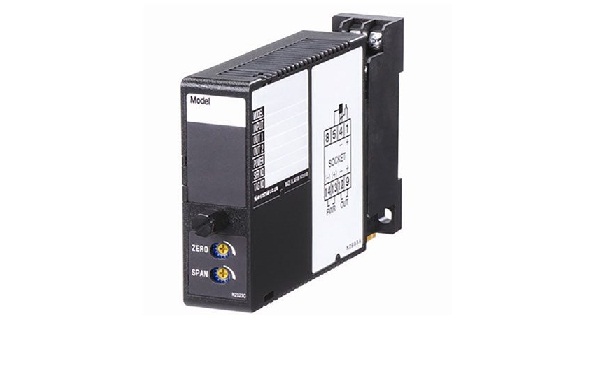

M2TS-2A-M

Functions & Features

• Accepts direct input from a thermocouple and provides a
standard process signal
• 5-segment linearization
• Burnout
• High-accuracy cold junction compensation
• Fast response type available
Typical Applications

• High-accuracy cold junction compensation benefits narrow
span measurements
• 0.1 μA burnout sensing enables long distance
transmission with minimum offset drifts
• Electric furnace (isolation ensured even when 200 V AC
power for heater leaks through furnace wall)
• No burnout type can connect to a single T/C in parallel
with a recorder

MODEL: M2TS–[1][2]–[3][4]

[1] INPUT THERMOCOUPLE
2: K (CA) (Usable range -270 to +1370°C, -454 to +2498°F)

[2] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 750 Ω max.)

[3] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[4] OPTIONS (multiple selections)
Response Time (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
Burnout
blank: Upscale burnout
/BL: Downscale burnout
/BN: No burnout
Standards & Approvals (must be specified)
/N: Without CE or UL

/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
(UL not available)
