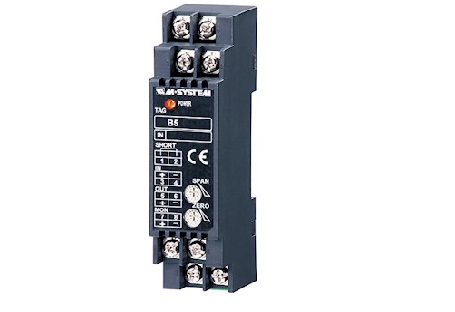

Thiết bị chuyển đổi tín hiệu, Model: B5RS-4/K

RTD TRANSMITTER

Functions & Features
• Accepts direct input from a RTD and provides an isolated 4 – 20 mA signal
• Linearization and burnout
• Monitor terminals
• High-density mounting
• Power LED

MODEL: B5RS–[1][2]

ORDERING INFORMATION
• Code number: B5RS-[1][2]
Specify a code from below for each [1] and [2].
  (e.g. B5RS-4/K/BL/Q)
• Temperature range (e.g. 0 – 500°C)
• Specify the specification for option code /Q
  (e.g. /C01)

[1] INPUT RTD (2- or 3-wire)
1: JPt 100 (JIS'89)
(Usable range: -200 to +500°C, -328 to +932°F; min.span: 50°C, 90°F)
3: Pt 100 (JIS'89)
(Usable range: -200 to +650°C, -328 to +1202°F; min.span: 50°C, 90°F)
4: Pt 100 (JIS'97, IEC)
(Usable range: -200 to +850°C, -328 to +1562°F; min.span: 50°C, 90°F)
5: Pt 50 Ω (JIS'81)
(Usable range: -200 to +500°C, -328 to +932°F; min.span: 100°C, 180°F)
6: Ni 508.4 Ω
(Usable range: -50 to +200°C, -58 to +392°F; min.span: 30°C, 54°F)
0: Specify
Note: Consult M-System for 2-wire RTD

[2] OPTIONS (multiple selections)
Response Time (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
Burnout
blank: Upscale burnout
/BL: Downscale burnout
Other Options
blank: none
/Q: Option other than the above (specify the specification)
