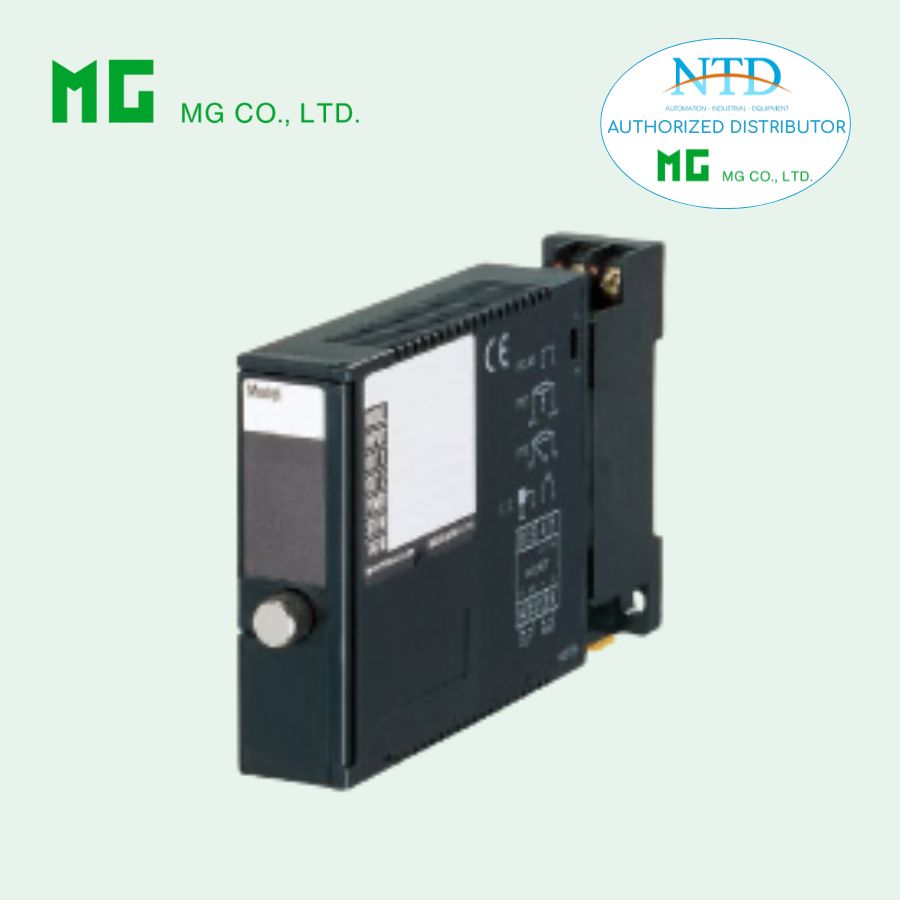

Thiết bị chuyển đổi tín hiệu, Model: M2DL-24-M

CURRENT LOOP SUPPLY
(with square root extractor; non-isolated)

Functions & Features
• Powers a 4 – 20 mA DC current loop
• Square root extraction
• Shortcircuit protection
• Applicable to smart transmitters
Typical Applications
• Various 2-wire transmitters


MODEL: M2DL–24-[1][2]

SUPPLY OUTPUT
24: 24 V DC

INPUT
Current
4 – 20 mA DC (Input resistance 310 Ω)

OUTPUT
Voltage
1 – 5 V DC (Load resistance 10 kΩ min.)

[1] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(Select ‘/N’ for ‘Standards & Approvals’ code.)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
R2: 11 – 27 V DC
(Operational voltage range 11 – 27 V, ripple 10 %p-p max.)
(Select ‘/N’ for ‘Standards & Approvals’ code.)
P: 110 V DC
(Operational voltage range 85 – 150 V, ripple 10 %p-p max.)
(Select ‘/N’ for ‘Standards & Approvals’ code.)

[2] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
