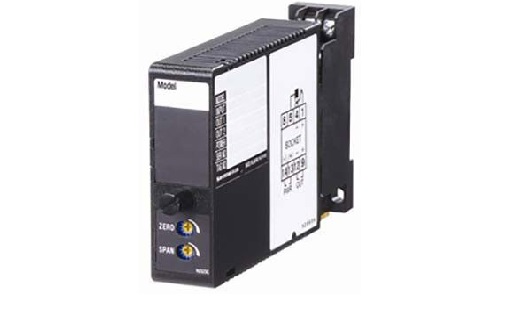

Thiết bị chuyển đổi tín hiệu, Model: M2SN-2AA/CE

INPUT LOOP POWERED ISOLATOR

Functions & Features
• Loop-powered design eliminates output loop power supply
• Two isolators housed in one enclosure
• 350 Ω output drive with 4 – 20 mA
Typical Applications
• Isolation between control room and field instrumentation, between telemetering system and input device
• Eliminates ground problems in existing systems
thanks to easiness of application without requiring additional power wiring


MODEL: M2SN-[1][2][3][4]

[1] NO. OF CHANNELS
1: 1 channel
2: 2 channels

[2] INPUT
Current
A: 4 – 20 mA DC
H: 10 – 50 mA DC

[3] OUTPUT
Current
A: 4 – 20 mA DC
Voltage
6: 1 – 5 V DC

[4] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
