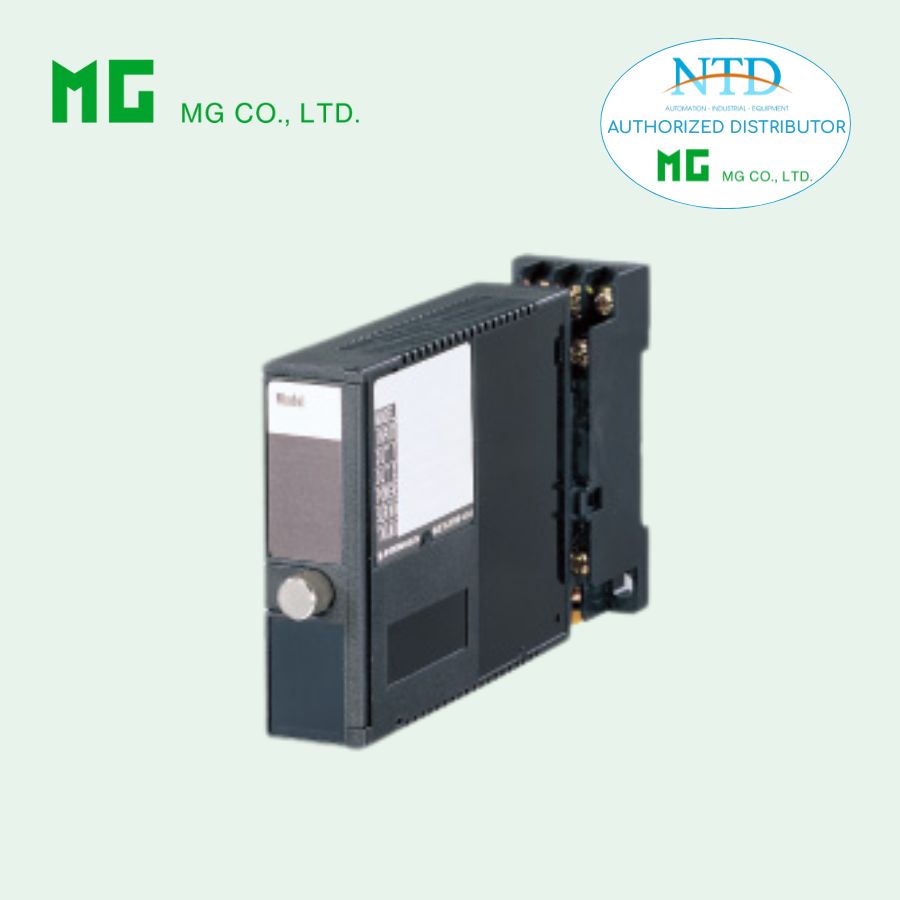

Thiết bị chuyển đổi tín hiệu, Model: M2XPA3-A14Z1-R/N

FREQUENCY TRANSMITTER
(PC programmable)

Functions & Features
• Converts the output from a pulse-type transducer into a standard process signal
• PC programmable
• Sensor excitation
• Direct RS-422 input
Typical Applications
• Positive displacement flowmeters, turbine flowmeters and vortex flowmeters
• Measuring rotation speed of a machine generating dry contact signals


MODEL: M2XPA3-[1][2][3]-[4][5]

[Factory default setting]
PARAMETER: DEFAULT
Input type: Open collector
Input amplitude: ----
Pulse sensing: DC coupled
Noise filter: None
Detecting level: 2 V
Frequency range: 0 – 200 kHz
Input zero frequency: 0 Hz
Input span frequency: 100 kHz
Linearization: No linearization
Low-end cutout: 0 % (No cutout)
Moving averaging samples: 1
Sensor excitation: 12 V DC / 20 mA
Output type: DC current
Output 0%: 4mA
Output 100%: 20mA

[1] INPUT
A1: Open collector
A2: Mechanical contact
B: Voltage pulse
G: Two-wire current pulse
J: RS-422 line driver pulse
Configurator software is used to change the frequency range. The input type can be switched to other than the one of the selected suffix code by selecting the input type selectors inside the unit before software adjustment.

[2] EXCITATION
2: 4 V DC / 20 mA
3: 8 V DC / 20 mA
4: 12 V DC / 20 mA
Configurator software is used to change the excitation value.

[3] OUTPUT
Current
Z1: Range 0 – 20 mA DC
Voltage
V1: Range -2.5 – +2.5 V DC
V2: Range -10 – +10 V DC
(Configurator software is used to adjust the output range and to change the output over the described range of the selected suffix code.)

[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
P: 110 V DC
(Operational voltage range 85 – 150 V, ripple 10 %p-p max.)
(110 V ±10 % for UL)

[5] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
