Thiết bị chuyển đổi tín hiệu, Model: M2XRP2-000-M2/N

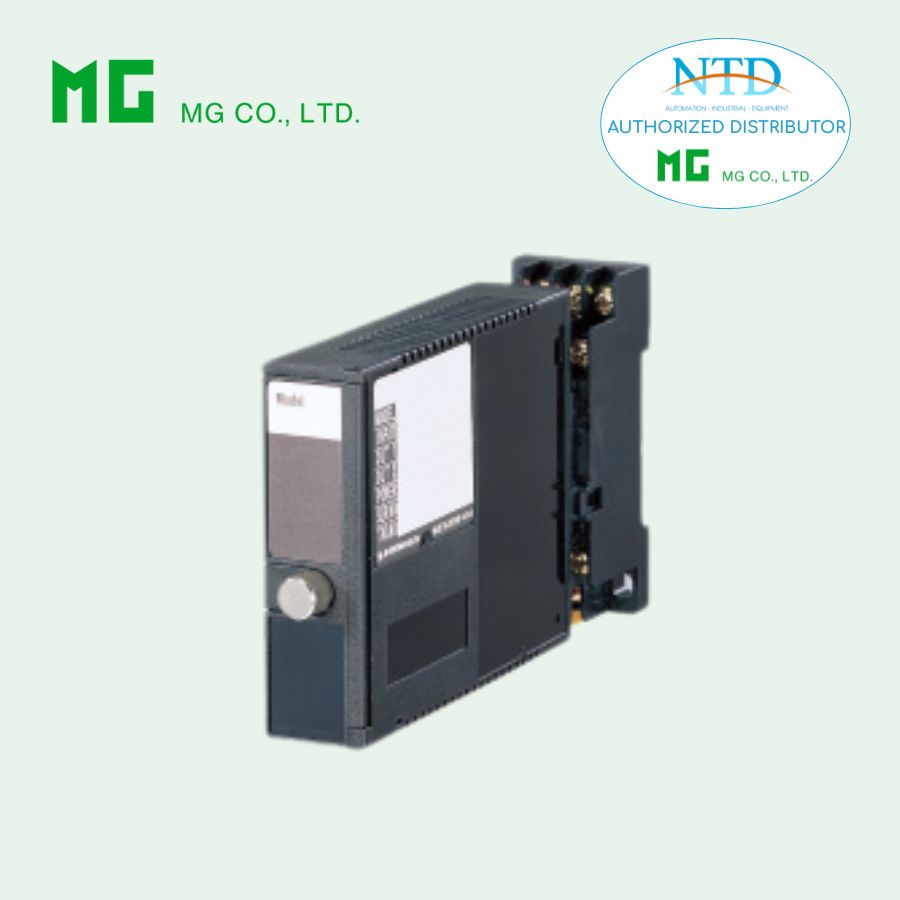

ENCODER SPEED TRANSMITTER
(PC programmable; built-in excitation)

Functions & Features
• Converts a two-phase forward and reverse rotation
pulse signal with 90 degree phase difference into a forward and reverse speed signal
• Built-in excitation
• PC programmable input and output ranges
• Input pulse monitoring LED
• Direct RS-422 input
Typical Applications
• Measuring moving speed of a machine with a rotary encoder


MODEL: M2XRP2-[1][2][3]-[4][5]

[1] INPUT
0: User-calibrated (Factory default: open collector, 0 – 100 kHz)
If the unit is to be factory-calibrated to a specific
input type, please select from the following:
A: Open collector
B: Voltage pulse
J: RS-422 line driver pulse

[2] EXCITATION
0: User-calibrated (Factory default: 12 V DC / 5 mA)
If the unit is to be factory-calibrated to a specific
voltage value, please select from the following:
1: 5 V DC / 5 mA
4: 12 V DC / 5 mA

[3] OUTPUT
0: User-calibrated (Factory default: 4 – 20 mA)
If the unit is to be factory-calibrated to a specific
output type, please select from the following:
Current
Z1: Range 0 – 20 mA DC
Voltage
V1: Range -2.5 – +2.5 V DC
V2: Range -10 – +10 V DC
(Configurator software is used to change output over the described range of the selected suffix code. For changing out of this range, set the Output Range Selectors inside the unit before software adjustment.)

[4] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
(90 – 264 V for UL)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
P: 110 V DC
(Operational voltage range 85 – 150 V, ripple 10 %p-p max.)
(110 V ±10 % for UL)

[5] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE or UL
/CE: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
