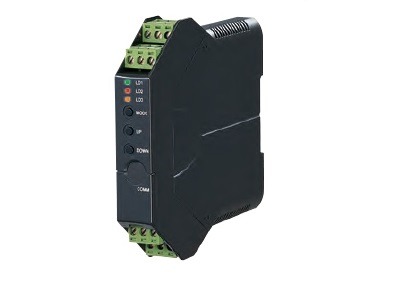

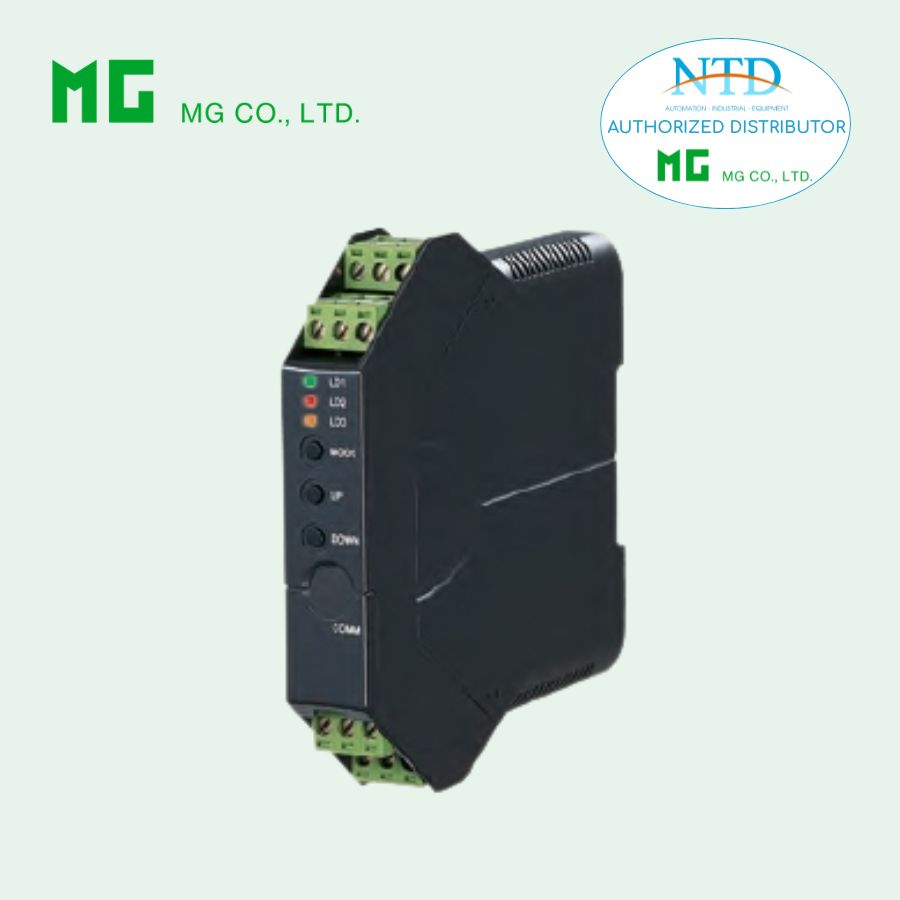

Thiết bị chuyển đổi tín hiệu, Model: M3LLC-S4-R4/B

STRAIN GAUGE TRANSMITTER
(field- and PC-configurable)

Functions & Features
• Provides a DC output signal proportional to a bridge type strain gauge utilized in load cells and pressure transducers
• Compatibility with strain gauges of various
bridge resistances and output ratings
• Supplies required excitation voltage; 0.1 – 10.0 V adjustable
• Response time ≤ 10 msec.
• Front control button function can be locked
Typical Applications
• Weighing system for tanks, hoppers and silos
• Weighing system using cranes
• Pressure sensor utilizing strain gauges
• Float level meter utilizing strain gauges


MODEL: M3LLC–[1]–R4/[2][3]


[1] INPUT STRAIN GAUGE
S1: 0.0 – 1.0 mV/V
S2: 0.0 – 3.0 mV/V
S3: 0.0 – 10.0 mV/V
S4: 0.0 – 30.0 mV/V

OUTPUT – Field-selectable
Current
0 – 20 mA DC
Voltage
-2.5 – +2.5 V DC
-10 – +10 V DC

POWER INPUT
DC Power
R4: 10 – 32 V DC
(Operational voltage range 9 - 36 V, ripple 10 %p-p max.)

[2] CONFIGURATION OPTIONS
A: PC and field configurable
B: Field configurable

[3] OPTIONS (multiple selections)
Standards & Approvals
blank: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
