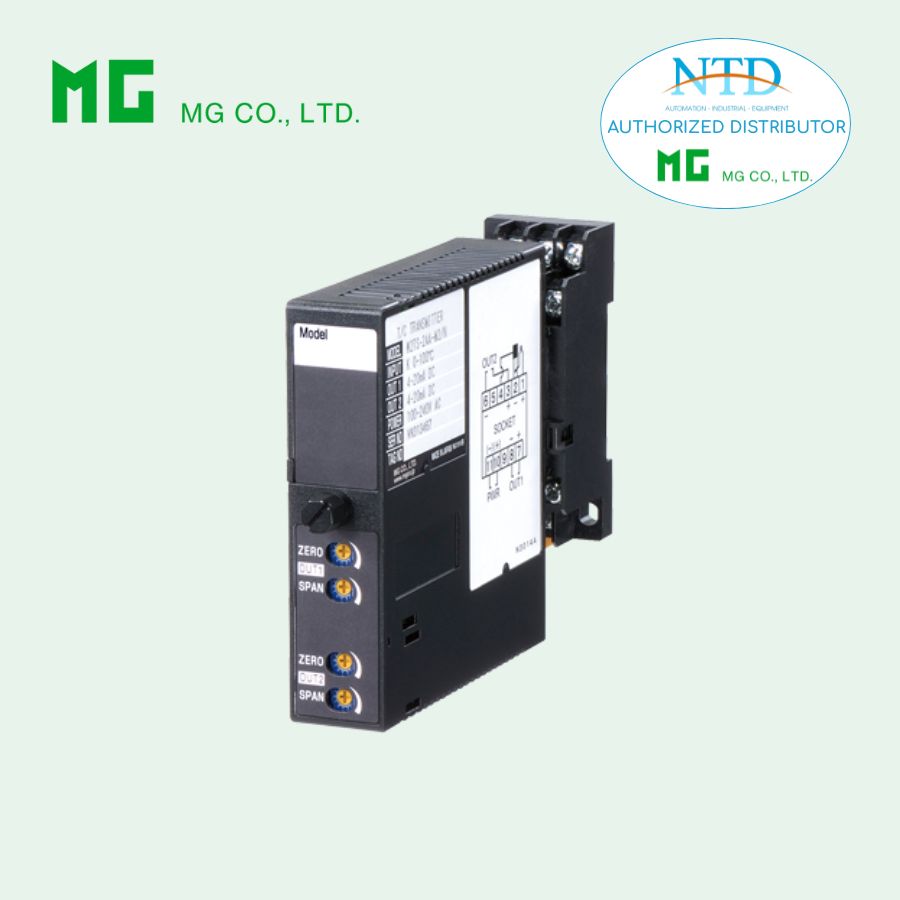

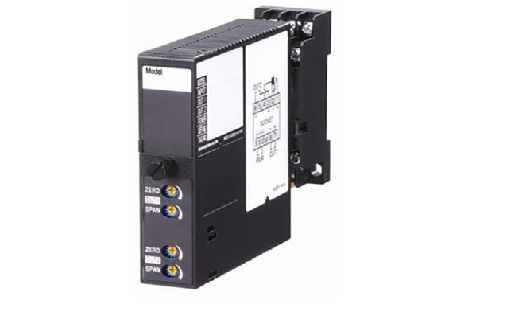

Thiết bị chuyển đổi tín hiệu, Model: W2PP-222N-R/N

PULSE ISOLATOR

Functions & Features
• Galvanically isolates pulse rate signals
• Input frequency = output frequency
• Various outputs (open collector, voltage pulses and dry contact AC/DC switch)
• High-density mounting
Typical Applications
• Isolating field pulse signals in order to reduce  noises
• Changing e.g. dry contact signal to e.g. 5 V signals


MODEL: W2PP–[1][2][3][4]-[5][6]

[1] INPUT
1: Mechanical contact (max. 30 Hz)
2: Open collector (max. 10 kHz)
3: Voltage pulse (max. 10 kHz)
9: Clamp-on pulse sensor CLSP

[2] OUTPUT 1
1: Low frequency open collector (max. 30 Hz)
2: High frequency open collector (max. 10 kHz)
(When the low frequency open collector or the dry
contact AC/DC switch is selected as one of the outputs,
the frequency of the other output is limited to max. 30 Hz.)
3: 5 V pulse (max. frequency 10 kHz)
(When the low frequency open collector or the dry
contact AC/DC switch is selected as one of the outputs,
the frequency of the other output is limited to max. 30 Hz.)
4: 12 V pulse (max. frequency 10 kHz)
(When the low frequency open collector or the dry
contact AC/DC switch is selected as one of the outputs,
the frequency of the other output is limited to max. 30 Hz.)
5: 24 V pulse (max. frequency 10 kHz)
(When the low frequency open collector or the dry
contact AC/DC switch is selected as one of the outputs,
the frequency of the other output is limited to max. 30 Hz.)
6: Dry contact AC/DC switch (max. frequency 30 Hz)

[3] OUTPUT 2
Same range availability as Output 1
Y: None

[4] OUTPUT LOGIC
N: The same as the input
R: Inverted

[5] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
 47 – 66 Hz)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
R2: 11 – 27 V DC
(Operational voltage range 11 – 27 V, ripple 10 %p-p max.)
(Select ‘/N’ for ‘Standards & Approvals’ code.)
P: 110 V DC
(Operational voltage range 85 – 150 V, ripple 10 %p-p max.)

[6] OPTIONS (multiple selections)
Standards & Approvals (must be specified)
/N: Without CE
/CE: CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
