Thiết bị đo công suất, Model: 53U-1221-AD4

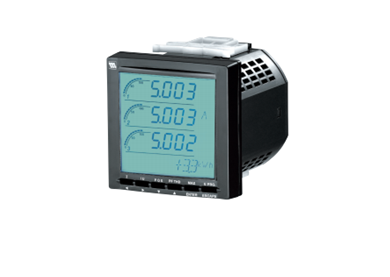

MULTI POWER MONITOR
(4 digital displays)

Functions & Features
• Measures simultaneously several variables of a heavycurrent power system: current, voltage, active, reactive and
apparent power, active and reactive energy, power factor,
frequency, etc.
• All measured values, counter values, display mode,
setting data are stored in the non-volatile memory at the
power off
• Conversion factors, system configuration, interval times
are programmable using the front buttons
• Open collector output for alarm or energy count

MODEL: 53U-1[1][2][3]-[4][5]
ORDERING INFORMATION
• Code number: 53U-1[1][2][3]-[4][5]
Specify a code from below for each [1] through [5].
 (e.g. 53U-1211-M2/H/UL/Q)
• Specify the specification for option code /Q
 (e.g. /C01/SET)
CONFIGURATION
1: Single-phase / 2-wire and 3-wire,
 3-phase / 3-wire and 4-wire
[1] INPUT
1: 480 V / 1 A AC
2: 480 V / 5 A AC

[2] CONTACT INPUT
0: None
( ‘External Interface’ codes 1, 4 and 5 Not selectable.)
1: 24 V DC
(‘External Interface’ codes 2, 3, 6, 7, 8 and 9 Not selectable.)
2: 110 V DC
(‘External Interface’ codes 2, 3, 6, 7, 8 and 9 Not selectable.)
[3] EXTERNAL INTERFACE
1: Modbus, Do × 1, Di × 1
2: 4 – 20 mA DC × 4
3: 1 – 5 V DC × 4
4: 4 – 20 mA DC × 2, Do × 1, Di × 1
5: 1 – 5 V DC × 2, Do × 1, Di × 1
6: 4 – 20 mA DC × 2, Do × 2
7: 1 – 5 V DC × 2, Do × 2
8: Modbus, Do × 3
9: Do × 4
[4] AUXILIARY POWER SUPPLY
AD4: universal (Option /UL not selectable.)
100 – 240 V AC (Operational range 85 – 264 V, 47 – 66 Hz) /
110 – 240 V DC (Operational range 99 – 264 V,
 ripple 10 %p-p max)
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
[5] OPTIONS (multiple selections)
Performance
blank: Standard
/H: High accuracy (voltage/current: ±0.2 %, energy: ±0.5 %)
Standards & Approvals
blank: CE marking
/UL: UL approval, CE marking
Other Options
blank: none
/Q: Option other than the above (specify the specification)
