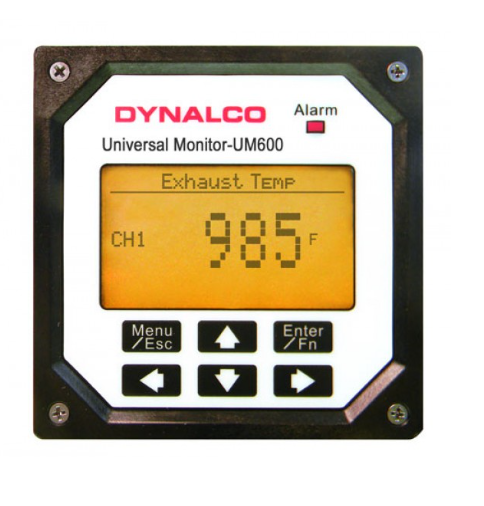

UM-600

UM-600 Series

6- Channel Universal Monitor

Description

The UM-600 Catalyst monitors up to 6 channels of any analog signal plus engine speed and hours and provides an alarm and two different shutdown signal upon user-defined set-points being exceeded. These alarms and shutdown parameters can be set based on absolute or differential values. It offers a user customizable graphic display that has 3 different display modes. It also offers on board data logging that can be accessed via a Modbus connection or a USB interface.

Software

Dynalco Catalyst Monitor and UM-600 6 - Channel Universal Monitor Software V1: Click here

Dynalco Catalyst Monitor and UM-600 6 - Channel Universal Monitor Software V2 Click here

Features

• Accepts thermocouple, 4-20 mA & DCV inputs

• Reads Differentials between channels 1 & 2, 3 & 4, 5 & 6
• 5-Digit Hourmeter Function
• Displays Engine RPM
• (2) Outputs for alarm/shutdown
• Backlit LCD Display
• Fully programmable from front keypad

UM-600 Datasheet

Dynalco UM-600 6 -Channel Universal Monitor Datasheet

UM-600 Operating Manual

Dynalco UM-600 6 -Channel Universal Monitor Manual

------------------------
