USE3000 Level Indicator

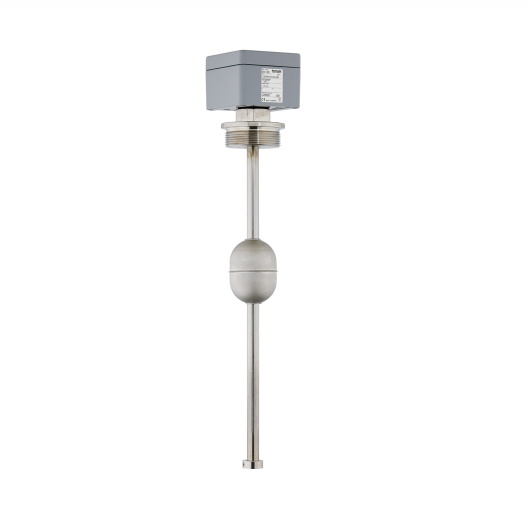

USE3000 Tank Level Transmitter

Max Length - 3000 mm

Description

The Barksdale Tank Level Transmitters are sensors for remote indication level of liquid media. They operate according to the float principle with magnetic transmission (Permanent magnet, Reed switch and resistor chain). The liquid level is indicated on indicating instruments connected to the sensor. The USE3200 provides a max. length up to 3000 mm.

Features

• Total length: up to 3000 mm
• In stainless steel or brass version
• Mounting position: from top / from bottom ±30°
• High repeatability
• Option: interface measurement and transducer

Applications

Level monitoring in

• Tanks
• Open containers
• Fuel and oil tanks
• Service and waste water

USE3000 Tank Level Transmitter Datasheet

------------------------
