USE6000 Level Indicator

USE6000 Level Indicator

Level Tank Transmitter

Description

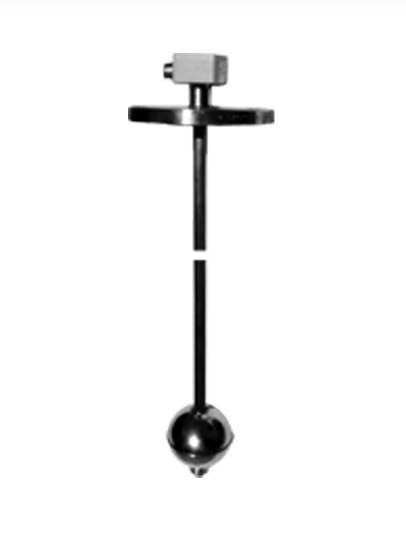

The Barksdale Tank Level Transmitters are sensors for remote indication level of liquid media. They operate according to the float principle with magnetic transmission (Permanent magnet, Reed switch and resistor chain). The liquid level is indicated on indicating instruments connected to the sensor. The USE6000 provides a max. length up to 6000 mm.

Features

• Total length: up to 6000 mm
• In stainless steel or brass version
• Mounting position: from top / from bottom ±30°
• High repeatability
• Option: interface measurement and transducer

Applications

Level monitoring in

• Tanks
• Open containers
• Fuel and oil tanks
• Service and waste water

USE6000 Tank Level Transmitter Datasheet

------------------------
