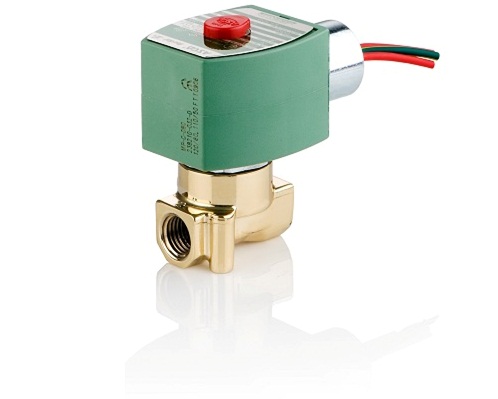

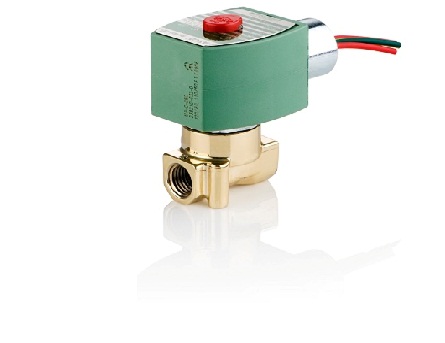

Asco - Van điện từ-2 Way: 2/2-ASCO Series 262

Van điện từ - 2 Way: 2/2 - ASCO Series 262

8262H022 120/60,110/50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid - Direct Acting

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

90

Function:

2 way - 2/2 Normally Closed

Pipe Size:

1/4

Catalog Number:

8262H022 120/60,110/50

General Information

Product Weight:

1.01 lb

Order Code:

21980

Shipping Weight:

1.19 lb

Kit Number:

323581

Operating Pressure Ratings:  PSI

Operating Air Pressure (Min-Max):

-185

Operating Water Pressure (Min-Max):

-180

Operating Oil Pressure (Min-Max):

-90

Technical Information

Actuation Method:

Solenoid - Direct Acting

Body Material:

Brass

Coil Class:

FT

Coil Number:

238210-032-D

I&M Pressure Vessel:

V_9575_R7-sec1.pdf
V_9575_R7-sec2.pdf

I&M Solenoid:

V_6583.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

1/4

Max Ambient Temperature:

131.00 F

Min Ambient Temperature:

-13.00 F

Max Fluid Temperature:

180.00 F

Min Fluid Temperature:

-13.00 F

Orifice Size:

1/8

Model Available:

8262H002 120/60,110/50

8262H114LT 120/60,110/50

8262H202 120/60,110/50

8262H208 120/60,110/50

8262H208V 120/60,110/50

-------------------------------------
