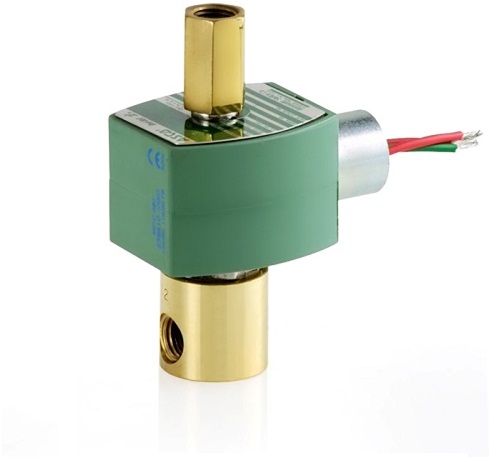

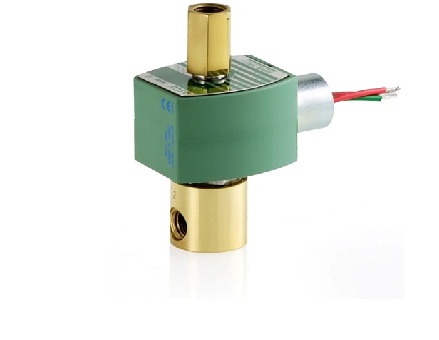

Asco - Van điện từ-3 Way: 3/2-ASCO Series 314

Van điện từ - 3 Way: 3/2 - ASCO Series 314

8314H036 120/60,110/50

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas;Water;Light Oil

Valve Actuation:

Solenoid - Direct Acting

Voltage:

110 AC;120 AC

Max Ops Pressure(PSI):

145

Function:

3 way - 3/2 Normally Closed

Pipe Size:

1/4

Catalog Number:

8314H036 120/60,110/50

General Information

Product Weight:

1.61 lb

Order Code:

22110

Shipping Weight:

1.68 lb

Kit Number:

323958

Operating Pressure Ratings: PSI

Operating Air Pressure (Min-Max)

-145

Operating Water Pressure (Min-Max)

-145

Operating Oil Pressure (Min-Max)

-100

Technical Information

Actuation Method:

Solenoid - Direct Acting

Body Material:

Brass

Coil Class:

FT

Coil Number:

238610-032-D

I&M Pressure Vessel

V_9599_R1.pdf

I&M Solenoid

V_6584_sec1.pdf
V_6584_sec2.pdf
V_6950_CH.pdf
V_6950_R8.pdf

Pipe or Port Size:

1/4

Max Ambient Temperature:

131.00 F

Min Ambient Temperature:

-13.00 F

Max Fluid Temperature:

200.00 F

Min Fluid Temperature:

-13.00 F

Mounting Bracket(s):

OPTIONAL

Orifice Size:

1/8

Model Available:

8314G300 24/DC

8314H008 120/60,110/50

8314H007 120/60,110/50

-------------------------------------
