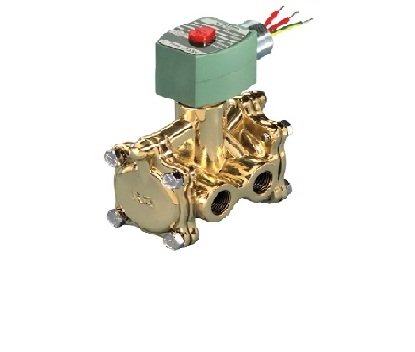

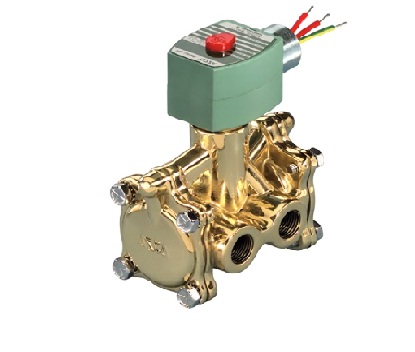

Asco - Van điện từ-3 Way: 3/2-ASCO Series 316

Van điện từ - 3 Way: 3/2 - ASCO Series 316

EF8316H301 24/DC

Type:

Solenoid Valve

Body Material:

Brass

Media Type:

Air, Inert Gas

Valve Actuation:

Solenoid

Voltage:

24 DC

Max Ops Pressure(PSI):

130

Function:

3 way - 3/2 Normally Closed

Pipe Size:

1/4

Catalog Number:

EF8316H301 24/DC

General Information

Product Weight:

3.46 lb

Order Code:

22130

Shipping Weight:

3.81 lb

Kit Number:

325074

Operating Pressure Ratings:

PSI

Operating Air Pressure (Min-Max):

15-130

Technical Information

Actuation Method:

Solenoid

Body Material:

Brass

Coil Class:

LP3

Coil Number:

238714-914-D

I&M Pressure Vessel

V_6928_R5_sec1.pdf
V_6928_R5_sec2.pdf

I&M Solenoid

V_6950_CH.pdf
V_6950_R8.pdf
V_9689.pdf

Pipe or Port Size:

1/4

Max Ambient Temperature:

149.00 F

Min Ambient Temperature:

-20.00 F

Max Fluid Temperature:

149.00 F

Min Fluid Temperature:

-20.00 F

Orifice Size:

5/16 in

Model Available

8316G064 120/60,110/50

EF8316G054 120/60,110/50

JPIS8316B301 24/DC

EV8316G384 24/DC

EF8316G064 120/60,110/50

-------------------------------------
